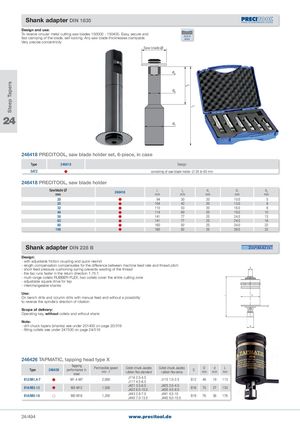

To receive circular metal cutting saw blades 150000 - 150405. Easy, secure and fast clamping of the blade, self-locking. Any saw blade thicknesses clampable. 1835 B shank Very precise concentricity Saw blade
24
246418 PRECITOOL, saw blade holder set, 6-piece, in case
| Type 246418 Design |
| SATZ consisting of saw blade holder20 to 63 mm |
246418 PRECITOOL, saw blade holder
| Sawblade mm | 246418 | l1 mm | l2 mm | d1 mm | d² mm | d3 mm |
| 20 | | 94 | 30 | 20 | 10�0 | 5 |
| 25 | | 104 | 42 | 20 | 13�0 | 8 |
| 32 | | 110 | 53 | 20 | 16�0 | 8 |
| 40 | | 114 | 60 | 20 | 19�5 | 10 |
| 50 | | 141 | 77 | 25 | 24�5 | 13 |
| 63 | | 141 | 77 | 25 | 24�5 | 16 |
| 80 | | 160 | 92 | 25 | 34�0 | 22 |
| 100 | | 160 | 92 | 25 | 39�5 | 22 |
Shank adapter DIN 228 B
Design: - with adjustable friction coupling and quick rewind - length compensation compensates for the difference between machine feed rate and thread pitch - short feed pressure cushioning spring prevents wasting of the thread - the tap runs faster in the return direction 1.75:1 - multi-range collets RUBBER-FLEX, two collets cover the entire cutting zone - adjustable square drive for tap - interchangeable shanks
Use: On bench drills and column drills with manual feed and without a possibility to reverse the spindle´s direction of rotation
Scope of delivery: Operating key, without collets and without shank
Note: - drill chuck tapers (shanks) see under 201400 on page 20/319 - fitting collets see under 247500 on page 24/516
246426 TAPMATIC, tapping head type X
| Type | 246426 | Tapping performance in steel | Permissible speed min -1 | Collet chuck Jacobs rubber-flex standard | Collet chuck Jacobs rubber-flex extra | S | D mm | d mm | L mm |
| B12/M1,4-7 | | M1�4-M7 | 2,000 | J116 2�5-4�5 J117 4�5-6�5 | J115 1�0-2�5 | B12 | 48 | 19 | 113 |
| B16/M3-12 | | M3-M12 | 1,500 | J421 3�5-6�5 J422 6�5-10�0 | J423 2�0-4�5 J420 4�5-8�0 | B16 | 70 | 27 | 153 |
| B18/M5-18 | | M5-M18 | 1,200 | J443 2�8-7�0 J440 7�0-13�0 | J441 4�5-10 J445 9�0-15�0 | B18 | 76 | 36 | 176 |
