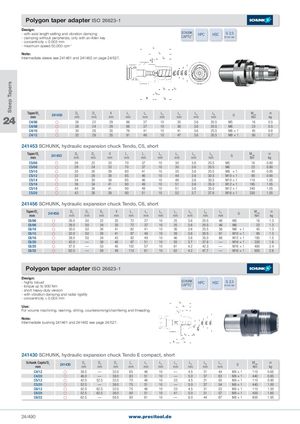

- with axial length setting and vibration damping SCHUNK HPC HSC G 2,5

- clamping without peripherals, only with an Allen key CAPTO™ 25.000 min-1 - concentricity < 0.003 mm - maximum speed 50,000 rpm-1

Note: Intermediate sleeve see 241461 and 241462 on page 24/527.

Taper/D1 mm	241450	D2 mm	D4 mm	X mm	L1 mm	L² mm	L3 mm	L4 mm	L5 mm	L6 mm	G	Mmin Nm	m kg
241450SC C4/06	HUNK hyd 	raulic e 26	xpansi 22	n chuc 29	Tendo 66	C4 sh 37	rt 10	35	3�6	20�5	M5	16	0�5
C4/08	, 	28	24	29	, 66	, 37	10	36	3�6	20�5	M6	23	0�5
C4/10		30	26	35	76	41	10	41	3�6	25�5	M8 × 1	45	0�6
C4/12		32	28	35	81	46	10	47	3�6	30�5	M8 × 1	90	0�7

241453 SCHUNK, hydraulic expansion chuck Tendo, C5, short

Taper/D1 mm	241453	D2 mm	D4 mm		X mm	L1 mm	L² mm	L3 mm	L4 mm	L5 mm	L6 mm		G	Mmin Nm	m kg
C5/06		26	22		33	70	37	10	30	3�6	20�5		M5	16	0�80
C5/08		28	24		33	70	37	10	30	3�6	20�5		M6	23	0�80
C5/10		30	26		39	80	41	10	35	3�6	25�5		M8 × 1	45	0�95
C5/12		32	28		39	85	46	10	44	3�6	30�5		M10 × 1	90	0�90
C5/14		34	30		39	85	46	10	46	3�6	30�5		M10 × 1	110	1�05
C5/16		38	34		41	90	49	10	51	3�6	35�0		M12 × 1	185	1�05
C5/18		40	36		41	90	49	10	51	3�6	35�0		M12 × 1	240	1�05
C5/20		42	38		39	90	51	10	52	3�7	37�8		M16 × 1	330	1�05
1456 S Taper/D1 mm	CHUNK, h 241456	ydraulic D2 mm	expans D3 mm	ion D4 mm	chuck X mm	Tendo, L1 mm	C6, sh L² mm	ort L3 mm	L4 mm	L5 mm	L6 mm	L7 mm	G	Mmin Nm	m kg
C6/06		26�0	50	22	35	72	37	10	25	3�6	20�5	46	M5	16	1�3
C6/08		28�0	50	24	35	72	37	10	25	3�6	20�5	46	M6	23	1�3
C6/10		30�0	50	26	41	82	41	10	36	3�6	25�5	56	M8 × 1	45	1�3
C6/12		32�0	50	28	41	87	46	10	39	3�6	30�5	61	M10 × 1	90	1�3
C6/16		38�0	50	34	43	92	49	10	46	3�6	35�0	66	M12 × 1	185	1�5
C6/20		42�0	—	38	46	97	51	10	55	3�7	37�8	—	M16 × 1	330	1�6
C6/25		57�0	—	53	45	102	57	10	61	4�2	42�3	—	M16 × 1	400	2�4
C6/32		62�5	—	59	49	110	61	10	62	4�2	47�7	—	M16 × 1	650	2�8

Polygon taper adapter ISO 26623-1

Design:

- highly robust SCHUNK HPC HSC G 2,5

- torque up to 900 Nm CAPTO™ 25.000 min-1 - short heavy-duty version - with vibration damping and radial rigidity

- concentricity < 0.003 mm

Use: For volume machining, reaming, drilling, countersinking/chamfering and threading

Note: Intermediate bushing 241461 and 241462 see page 24/527.

241430 SCHUNK, hydraulic expansion chuck Tendo E compact, short

Schunk Capto/D1 mm	241430	D2 mm	D3 mm	D4 mm	L1 mm	L² mm	L3 mm	L4 mm	L5 mm	L6 mm	L7 mm	G	Mmin Nm	m kg
C4/12		39�5	—	32�0	65	46	10	—	4�5	31	44	M8 × 1	110	0�65
C4/20		46�0	—	38�0	83	51	10	—	5�0	37	63	M8 × 1	440	0�85
C5/12		42�0	52�5	32�0	70	46	10	33	4�5	31	50	M8 × 1	110	0�90
C5/20		52�5	—	38�0	75	51	10	—	5�0	37	54	M8 × 1	440	1�00
C6/12		42�0	62�5	32�0	75	46	10	33	4�5	31	53	M8 × 1	110	1�50
C6/20		52�5	62�5	38�0	80	51	10	41	5�0	31	57	M8 × 1	400	1�60
C6/32		62�5	—	58�5	90	61	10	—	6�0	44	67	M8 × 1	800	1�95
