Suitable for inductive, contact and hot air shrink-fit units - fine balancing with balancing screws possible - heat resistant hot-working steel - hardened 54-2 HRC - for HSS and solid carbide tools - shank tolerance h6 - interface with polygonal taper and face contact - exact positioning in the peripheral direction - very high concentricity, high torque and high rigidity - suitable for machining on turning and milling centres alike

Delivery: With length setting screw (except 242760)

Note: Matching accessories see page 24/522 et seq.

10mm l 1

HAIMER CAPTO™

4.5° l 2

HPC

HSC

G 2,5 25.000 min-1

24 242760 HAIMER, shrink-fit chuck, C6, ultra short, with Cool Jet

Taper/d1 mm	242760	d4 mm	l1 mm	l2 mm	Taper/d1 mm	242760	d4 mm	l1 mm	l2 mm
C6/06		22�0	65	38	C6/16		29�5	70	51
C6/08		22�0	65	38	C6/18		35�5	70	51
C6/10		26�5	65	43	C6/20		35�5	70	53
C6/12		26�5	65	46	C6/25		45�0	80	60
C6/14		29�5	70	48	C6/32		45�0	80	65

242761 HAIMER, shrink-fit chuck, C6, short

Taper/d1 mm	242761	d3 mm	d4 mm	l1 mm	l2 mm	Taper/d1 mm	242761	d3 mm	d4 mm	l1 mm	l2 mm
C6/03		—	10	80	9	C6/14		34	27	85	47
C6/04		—	10	80	12	C6/16		34	27	85	50
C6/05		—	10	80	15	C6/18		42	33	85	50
C6/06		27	21	80	36	C6/20		42	33	85	52
C6/08		27	21	80	36	C6/25		53	44	90	58
C6/10		32	24	80	42	C6/32		53	44	95	58
C6/12		32	24	80	47	—	—	—	—	—	—

242763 HAIMER, shrink-fit chuck, C6, long

Taper/d1 mm	242763	d3 mm	d4 mm	l1 mm	l2 mm	Taper/d1 mm	242763	d3 mm	d4 mm	l1 mm	l2 mm
C6/06		27	21	100	36	C6/14		34	27	100	47
C6/08		27	21	100	36	C6/16		34	27	100	50
C6/10		32	24	100	42	C6/18		42	33	100	50
C6/12		32	24	100	47	C6/20		42	33	100	52

242765 HAIMER, shrink-fit chuck, C6, ZG130

Taper/d1 mm	242765	d3 mm	d4 mm	l1 mm	l2 mm	Taper/d1 mm	242765	d3 mm	d4 mm	l1 mm	l2 mm
C6/06		27	21	130	36	C6/16		34	27	130	50
C6/08		27	21	130	36	C6/18		42	33	130	50
C6/10		32	24	130	42	C6/20		42	33	130	52
C6/12		32	24	130	47	C6/25		53	44	130	58
C6/14		34	27	130	47	C6/32		53	44	130	58

242767 HAIMER, shrink-fit chuck, C6, overlong

Taper/d1 mm	242767	d3 mm	d4 mm	l1 mm	l2 mm	Taper/d1 mm	242767	d3 mm	d4 mm	l1 mm	l2 mm
C6/06		27	21	160	36	C6/16		34	27	160	50
C6/08		27	21	160	36	C6/18		42	33	160	50
C6/10		32	24	160	42	C6/20		42	33	160	52
C6/12		32	24	160	47	C6/25		53	44	160	58
C6/14		34	27	160	47	C6/32		53	44	160	58

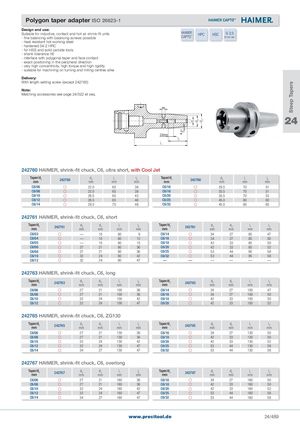

Общий каталог PRECITOOL - страница 494
