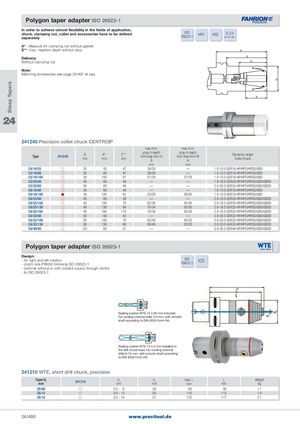

Steep Tapers Polygon taper adapter ISO 26623-1 In order to achieve utmost flexibility in the fields of application, chuck, clamping nut, collet and accessories have to be definedseparately ISO26623-1 HPC HSC G 2,525.000 min-1 A* : Measure for clamping nut without gasket E**: max. insertion depth without stop Delivery: Without clamping nut Note: Matching accessories see page 24/497 et seq. 24 241240 Precision collet chuck CENTRO|P max./min. max./min. Type 241240 Dmm A*mm E**mm plug-in depthlimit-stop form UG plug-in depthlimit-stop form WH Clamping range/Collet chuck mm mm C4/16/55  30 55 47 38/29 — 1.0-10.0 GER16-HP/HPD/HPDD/GBD C5/16/60  30 60 47 38/29 — 1.0-10.0 GER16-HP/HPD/HPDD/GBD C5/16/100  30 100 87 51/29 37/29 1.0-10.0 GER16-HP/HPD/HPDD/GBD C5/25/60  40 60 48 — — 1.0-16.0 GER25-HP/HPD/HPDD/GBD/GBDD C5/32/60  50 60 49 — — 2.0-20.0 GER32-HP/HPD/HPDD/GBD/GBDD C6/16/60  30 60 44 — — 1.0-10.0 GER16-HP/HPD/HPDD/GBD C6/16/100  30 100 83 53/29 39/25 1.0-10.0 GER16-HP/HPD/HPDD/GBD C6/25/60  40 60 38 — — 2.0-16.0 GER25-HP/HPD/HPDD/GBD/GBDD C6/25/100  40 100 78 62/36 45/30 2.0-16.0 GER25-HP/HPD/HPDD/GBD/GBDD C6/25/130  40 130 99 70/34 50/30 2.0-16.0 GER25-HP/HPD/HPDD/GBD/GBDD C6/25/160  40 160 118 70/39 50/30 2.0-16.0 GER25-HP/HPD/HPDD/GBD/GBDD C6/32/60  50 60 42 — — 2.0-20.0 GER32-HP/HPD/HPDD/GBD/GBDD C6/32/100  50 100 79 63/45 45/25 2.0-20.0 GER32-HP/HPD/HPDD/GBD/GBDD C6/32/130  50 130 99 65/45 53/25 2.0-20.0 GER32-HP/HPD/HPDD/GBD/GBDD C6/40/65  63 65 51 — — 3.0-26.0 GER40-HP/HPD/HPDD/GBD/GBDD Polygon taper adapter ISO 26623-1 Design: - for right and left rotation- clutch size PSK63 following ISO 26623-1 ISO26623-1 ICS - optional without or with coolant supply through centre - to ISO 26623-1 Sealing washer WTE 13 2.05 mm included. For cooling channel drills 3-6 mm, with smooth shaft according to DIN 6535 Form HA. Sealing washer WTE 13 4.2 mm installed in the drill chuck head. For cooling channel drills 6-13 mm, with smooth shaft according to DIN 6535 Form HA. 241210 WTE, short drill chuck, precision Taper/d1mm 241210 d 1mm d 3 max. l1 l 2 Weightmmmmmmkg C6/08  0.3 -   8 36 93 90 1.1 C6/13  0.5 - 13 50 118 112 1.9 C6/16  2.5 - 16 57 123 117 2.1 24/488 www.precitool.de
