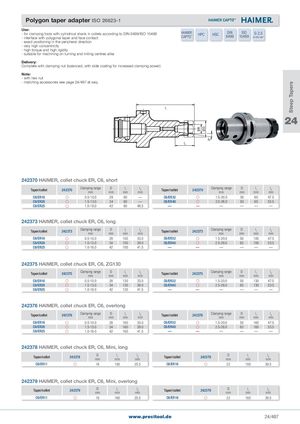

ER ØD 8° Steep Tapers Polygon taper adapter ISO 26623-1 Use: - for clamping tools with cylindrical shank in collets according to DIN 6499/ISO 15488- interface with polygonal taper and face contact HAIMERCAPTO™HPC HSC DIN ISO G 2,5649915488 25.000 min-1 - exact positioning in the peripheral direction - very high concentricity - high torque and high rigidity - suitable for machining on turning and milling centres alike Delivery: Complete with clamping nut (balanced, with slide coating for increased clamping power) Note: - with hex nut - matching accessories see page 24/497 et seq. l1 24 l2 242370 HAIMER, collet chuck ER, C6, short Taper/collet 242370 Clamping rangemm Dmm l 1mm l 2mm Taper/collet 242370 Clamping rangemm Dmm l 1mm l 2mm C6/ER16  0.5-10.0 28 60 — C6/ER32  1.5-20.0 50 60 47.5 C6/ER20  1.5-13.0 34 60 — C6/ER40  2.5-26.0 63 65 53.5 C6/ER25  1.0-16.0 42 60 48.5 — — — — — — 242373 HAIMER, collet chuck ER, C6, long Taper/collet 242373 Clamping rangemm Dmm l1mm l2mm Taper/collet 242373 Clamping rangemm Dmm l1mm l2mm C6/ER16  0.5-10.0 28 100 33.0 C6/ER32  1.5-20.0 50 100 47.5 C6/ER20  1.5-13.0 34 100 39.0 C6/ER40  2.5-26.0 63 100 53.5 C6/ER25  1.0-16.0 42 100 41.5 — — — — — — 242375 HAIMER, collet chuck ER, C6, ZG130 Taper/collet 242375 Clamping rangemm Dmm l1mm l2mm Taper/collet 242375 Clamping rangemm Dmm l1mm l2mm C6/ER16  0.5-10.0 28 130 33.0 C6/ER32  1.5-20.0 50 130 47.5 C6/ER20  1.5-13.0 34 130 39.0 C6/ER40  2.5-26.0 63 130 53.5 C6/ER25  1.0-16.0 42 130 41.5 — — — — — — 242376 HAIMER, collet chuck ER, C6, overlong Taper/collet 242376 Clamping rangemm Dmm l1mm l2mm Taper/collet 242376 Clamping rangemm Dmm l1mm l2mm C6/ER16  0.5-10.0 28 160 33.0 C6/ER32  1.5-20.0 50 160 47.5 C6/ER20  1.5-13.0 34 160 39.0 C6/ER40  2.5-26.0 63 160 53.5 C6/ER25  1.0-16.0 42 160 41.5 — — — — — — 242378 HAIMER, collet chuck ER, C6, Mini, long Taper/collet 242378 Dmm l1mm l2mm Taper/collet 242378 Dmm l1mm l2mm C6/ER11  16 100 25.5 C6/ER16  22 100 39.5 242379 HAIMER, collet chuck ER, C6, Mini, overlong Taper/collet 242379 Dmm l1mm l2mm Taper/collet 242379 Dmm l1mm l2mm C6/ER11  16 160 25.5 C6/ER16  22 160 39.5 www.precitool.de 24/487
