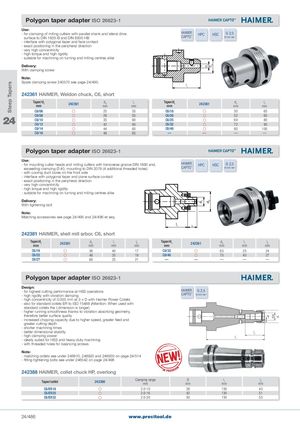

- for clamping of milling cutters with parallel shank and lateral drive surface to DIN 1835-B and DIN 6935-HB - interface with polygonal taper and face contact - exact positioning in the peripheral direction - very high concentricity - high torque and high rigidity - suitable for machining on turning and milling centres alike
Delivery: With clamping screw
Note: Spare clamping screw 240570 see page 24/495.
242361 HAIMER, Weldon chuck, C6, short
HAIMER HPC HSC G 2,5
CAPTO™ 25.000 min-1
l 1
| Taper/d1 mm | 242361 | d3 mm | l1 mm | Taper/d1 mm | 242361 | d3 mm | l1 mm |
| C6/06 | | 25 | 55 | C6/18 | | 50 | 65 |
| C6/08 | | 28 | 55 | C6/20 | | 52 | 65 |
| C6/10 | | 35 | 60 | C6/25 | | 64 | 80 |
| C6/12 | | 42 | 60 | C6/32 | | 72 | 90 |
| C6/14 | | 44 | 60 | C6/40 | | 80 | 100 |
| C6/16 | | 48 | 65 | — | — | — | — |
Polygon taper adapter ISO 26623-1
Use: - for mounting cutter heads and milling cutters with transverse groove DIN 1880 and, exceeding clamping Ø 40, mounting to DIN 2079 (4 additional threaded holes) - with cooling duct bores on the front side - interface with polygonal taper and plane surface contact - exact positioning in the peripheral direction - very high concentricity - high torque and high rigidity - suitable for machining on turning and milling centres alike
Delivery: With tightening bolt
Note: Matching accessories see page 24/495 and 24/496 et seq.
242381 HAIMER, shell mill arbor, C6, short
HAIMER HPC HSC G 2,5
CAPTO™ 25.000 min-1
l 1 L
| Taper/d1 mm | 242381 | d3 mm | l1 mm | l2 mm | Taper/d1 mm | 242381 | d3 mm | l1 mm | l2 mm |
| C6/16 | | 36 | 40 | 17 | C6/32 | | 63 | 25 | 24 |
| C6/22 | | 48 | 25 | 19 | C6/40 | | 70 | 40 | 27 |
| C6/27 | | 60 | 25 | 21 | — | — | — | — | — |
Polygon taper adapter ISO 26623-1
Design:
- for highest cutting performance at HSS operations HAIMER G 2,5
- high rigidity with vibration damping CAPTO™ 30.000 min-1 - high concentricity of 0.003 mm at 3 × D with Haimer Power Collets - also for standard collets ER to ISO 15488 (Attention: When used with
standard collets the I dimension is longer) - higher running smoothness thanks to vibration absorbing geometry, 1 therefore better surface quality - increased chipping capacity due to higher speed, greater feed and greater cutting depth - shorter machining times - better dimensional stability l - high clamping power 2 l - ideally suited for HSS and heavy-duty machining 1 - with threaded holes for balancing screws
Note: - matching collets see under 248910, 248920 and 248930 on page 24/514 - fitting tightening bolts see under 246542 on page 24/498
242388 HAIMER, collet chuck HP, overlong
| Taper/collet | 242388 | Clamping range mm | D mm | l1 mm | l2 mm |
| C6/ER16 | | 2�0-10 | 28 | 130 | 43 |
| C6/ER25 | | 2�0-16 | 42 | 130 | 51 |
| C6/ER32 | | 2�0-20 | 50 | 130 | 53 |
