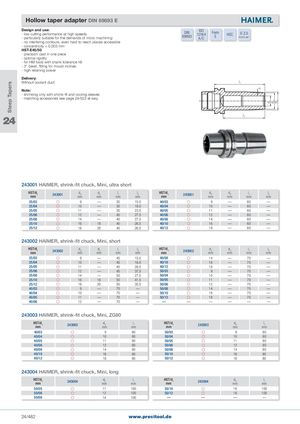

Steep Tapers d1 d3 d4 3° Hollow taper adapter DIN 69893 E Design and use:- low cutting performance at high speeds- particularly suitable for the demands of micro machining DIN69893ISO12164A/CFormEHSC G 2,525.000 min-1 - no interfering contours, even hard to reach places accessible - concentricity < 0.003 mm HST-E40/50 - precision cast in one piece - optimal rigidity - for HM tools with shank tolerance h6 - 3° bevel, fitting for mould inclines - high retaining power Delivery: Without coolant duct l1 Note: - shrinking only with shrink-fit and cooling sleeves - matching accessories see page 24/522 et seq. l2 24 243001 HAIMER, shrink-fit chuck, Mini, ultra short HST/d1mm 243001 d3mm d4mm l1mm l2mm HST/d1mm 243001 d3mm d4mm l1mm l2mm 25/03  9 — 35 15.0 40/03  9 — 60 — 25/04  10 — 35 18.0 40/04  10 — 60 — 25/05  11 — 35 23.0 40/05  11 — 60 — 25/06  12 — 40 27.5 40/06  12 — 60 — 25/08  14 — 40 27.0 40/08  14 — 60 — 25/10  16 18 40 26.5 40/10  16 — 60 — 25/12  18 20 40 26.0 40/12  18 — 60 — 243002 HAIMER, shrink-fit chuck, Mini, short HST/d1mm 243002 d3mm d4mm l1mm l2mm HST/d1mm 243002 d3mm d4mm l1mm l2mm 25/03  9 — 45 15.0 40/08  14 — 70 — 25/04  10 — 45 18.0 40/10  16 — 70 — 25/05  11 — 45 28.0 40/12  18 — 70 — 25/06  12 — 45 37.5 50/03  9 — 70 — 25/08  14 — 50 27.0 50/04  10 — 70 — 25/10  16 18 50 41.5 50/05  11 — 70 — 25/12  18 20 50 35.5 50/06  12 — 70 — 40/03  9 — 70 — 50/08  14 — 70 — 40/04  10 — 70 — 50/10  16 — 70 — 40/05  11 — 70 — 50/12  18 — 70 — 40/06  12 — 70 — — — — — — — 243003 HAIMER, shrink-fit chuck, Mini, ZG80 HST/d1mm 243003 d3mm l1mm HST/d1mm 243003 d3mm l1mm 40/03  9 80 50/03  9 80 40/04  10 80 50/04  10 80 40/05  11 80 50/05  11 80 40/06  12 80 50/06  12 80 40/08  14 80 50/08  14 80 40/10  16 80 50/10  16 80 40/12  18 80 50/12  18 80 243004 HAIMER, shrink-fit chuck, Mini, long HST/d1mm 243004 d 3mm l1mm HST/d1mm 243004 d 3mm l1mm 50/05  11 100 50/10  16 100 50/06  12 100 50/12  18 100 50/08  14 100 — — — — 24/482 www.precitool.de
