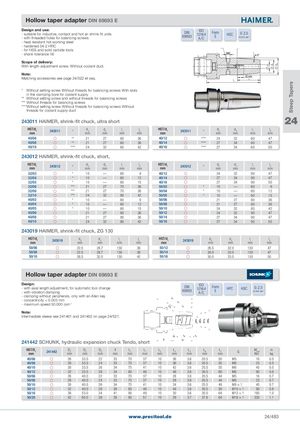

Общий каталог PRECITOOL

- suitable for inductive, contact and hot air shrink-fit units	DIN	Form	HSC	G 2,5
- with threaded holes for balancing screws	69893	E

A/C 25.000 min-1 - heat resistant hot-working steel - hardened 54-2 HRC - for HSS and solid carbide tools

- shank tolerance h6

Scope of delivery: With length adjustment screw. Without coolant duct.

Note: Matching accessories see page 24/522 et seq. l l 2 1 * Without setting screw Without threads for balancing screws With slots in the clamping bore for coolant supply ** Without setting screw and without threads for balancing screws *** Without threads for balancing screws **** Without setting screw Without threads for balancing screws Without threads for coolant supply duct

24 243011 HAIMER, shrink-fit chuck, ultra short

HST/d			d	d	l	l	HST/d			d	d	l	l
	243011 1	*	3	4	1	2		243011 1	*	3	4	1	2
mm			mm	mm	mm	mm	mm			mm	mm	mm	mm
40/06		**	21	27	60	36	40/12		****	24	32	60	47
40/08		**	21	27	60	36	40/14		****	27	34	60	47
40/10		****	24	32	60	42	40/16		****	27	34	60	50
243012 HAIMER, shrink-fit chuck, short,
HST/d			d	d	l	l	HST/d			d	d	l	l
	243012 1	*	3	4	1	2		243012 1	*	3	4	1	2
mm			mm	mm	mm	mm	mm			mm	mm	mm	mm
32/03		*	10	—	60	9	40/12			24	32	90	47
32/04		*	10	—	60	12	40/14			27	34	90	47
32/05		*	10	—	60	15	40/16			27	34	90	50
32/06		***	21	27	70	36	50/03		*	10	—	60	9
32/08		***	21	27	70	36	50/04		*	10	—	60	12
32/10		***	24	32	80	42	50/05		*	10	—	60	15
40/03		*	10	—	60	9	50/06			21	27	80	36
40/04		*	10	—	60	12	50/08			21	27	80	36
40/05		*	10	—	60	15	50/10			24	32	85	42
40/06			21	27	80	36	50/12			24	32	90	47
40/08			21	27	80	36	50/14			27	34	90	47
40/10			24	32	80	42	50/16			27	34	95	50
243019 HAIMER, shrink-fit chuck, ZG 130
HST/d			d	d	l	l	HST/d			d	d	l	l
	1 243019		3	4	1	2		1 243019		3	4	1	2
mm			mm	mm	mm	mm	mm			mm	mm	mm	mm
50/06			22�5	28�7	130	36	50/12			26�5	32�0	130	47
50/08			22�5	28�7	130	36	50/14			30�0	33�0	130	47
50/10			26�5	32�0	130	42	50/16			30�0	33�0	130	50
Hollow taper adapter DIN 69893 E
Design:									ISO
- with axial length adjustment, for automatic tool change								DIN		Form		G 2,5

12164 HPC HSC

- with vibration damping 69893 E

A/C 25.000 min-1 - clamping without peripherals, only with an Allen key - concentricity < 0.003 mm - maximum speed 50,000 rpm-1

Note: Intermediate sleeve see 241461 and 241462 on page 24/527.

241442 SCHUNK, hydraulic expansion chuck Tendo, short

HST/D1 mm	241442	D2 mm	D3 mm	D4 mm	X mm	L1 mm	L² mm	L3 mm	L4 mm	L5 mm	L6 mm	L7 mm	G	Mmin Nm	m kg
40/06		26	33�5	22	33	70	37	10	36	3�6	20�5	50	M5	16	0�5
40/08		28	33�5	24	33	70	37	10	36	3�6	20�5	50	M6	23	0�5
40/10		30	33�5	26	34	75	41	10	42	3�6	25�5	55	M6	45	0�5
40/12		32	33�5	28	34	80	46	10	48	3�6	30�5	60	M6	90	0�6
50/06		26	40�0	22	33	70	37	10	28	3�6	20�5	44	M5	16	0�7
50/08		28	40�0	24	33	70	37	10	28	3�6	20�5	44	M6	23	0�7
50/10		30	40�0	26	34	75	41	10	34	3�6	25�5	49	M8 × 1	45	0�7
50/12		32	40�0	28	39	85	46	10	44	3�6	30�5	59	M10 × 1	90	0�8
50/16		38	53�0	34	41	90	49	10	30	3�6	35�0	64	M12 × 1	185	1�0
50/20		42	60�0	38	39	90	51	10	29	3�7	37�8	64	M16 × 1	330	1�1
