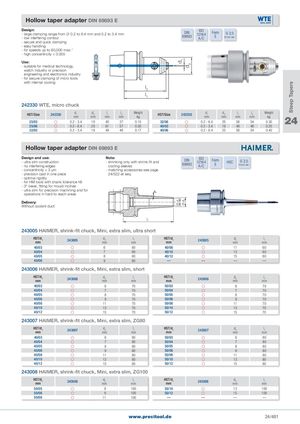

| - large clamping range from 0.2 to 6.4 mm and 0.2 to 3.4 mm | DIN | Form | G 2,5 |
| - low interfering contour | 69893 | E |
A/C 25.000 min-1 - secure and quick clamping - easy handling - for speeds up to 60,000 max.-1
- high concentricity < 0.005
Use: - suitable for medical technology, watch industry or precision engineering and electronics industry - for secure clamping of micro tools with internal cooling
l
2
l
1
242330 WTE, micro chuck
| d | d | l | l | Weight | d | d | l | l | Weight | |||||||
| HST/Size | 242330 | 1 | 3 | 1 | 2 | HST/Size | 242330 | 1 | 3 1 | 2 | ||||||
| mm | mm | mm | mm | kg | mm | mm | mm | mm | 24 kg | |||||||
| 25/03 | | 0�2 - 3�4 | 19 | 40 | 37 | 0�10 | 32/06 | | 0�2 - 6�4 | 25 | 58 | 54 | 0�30 | |||
| 25/06 | | 0�2 - 6�4 | 25 | 61 | 57 | 0�30 | 40/03 | | 0�2 - 3�4 | 19 | 49 | 46 | 0�25 | |||
| 32/03 | | 0�2 - 3�4 | 19 | 49 | 46 | 0�17 | 40/06 | | 0�2 - 6�4 | 25 | 58 | 54 | 0�40 | |||
| Hollow taper adapter DIN 69893 E | ||||||||||||||||
| Design and use: | Note: | ISO | ||||||||||||||
| - ultra slim construction | - shrinking only with shrink-fit and | DIN | Form | G 2,5 | ||||||||||||
| 12164 | HSC | |||||||||||||||
| - no interfering edges | cooling sleeves | 69893 | E | |||||||||||||
| A/C | 25.000 min-1 | |||||||||||||||
| - concentricity < 3 µm | - matching accessories see page | |||||||||||||||
| - precision cast in one piece | 24/522 et seq. | l |
- optimal rigidity 1 - for HM tools with shank tolerance h6 - 3° bevel, fitting for mould inclines - ultra slim for precision machining and for
operations in hard to reach areas
Delivery: Without coolant duct
l 1
243005 HAIMER, shrink-fit chuck, Mini, extra slim, ultra short
| HST/d | d | l | HST/d | d | l | ||
| 1 243005 | 3 | 1 | 1 243005 | 3 | 1 | ||
| mm | mm | mm | mm | mm | mm | ||
| 40/03 | | 6 | 60 | 40/08 | | 11 | 60 |
| 40/04 | | 7 | 60 | 40/10 | | 13 | 60 |
| 40/05 | | 8 | 60 | 40/12 | | 15 | 60 |
| 40/06 | | 9 | 60 | — | — | — | — |
| 243006 HAIMER, shrink-fit chuck, Mini, extra slim, short | |||||||
| HST/d | d | l | HST/d | d | l | ||
| 1 243006 | 3 | 1 | 1 243006 | 3 | 1 | ||
| mm | mm | mm | mm | mm | mm | ||
| 40/03 | | 6 | 70 | 50/03 | | 6 | 70 |
| 40/04 | | 7 | 70 | 50/04 | | 7 | 70 |
| 40/05 | | 8 | 70 | 50/05 | | 8 | 70 |
| 40/06 | | 9 | 70 | 50/06 | | 9 | 70 |
| 40/08 | | 11 | 70 | 50/08 | | 11 | 70 |
| 40/10 | | 13 | 70 | 50/10 | | 13 | 70 |
| 40/12 | | 15 | 70 | 50/12 | | 15 | 70 |
| 243007 HAIMER, shrink-fit chuck, Mini, extra slim, ZG80 | |||||||
| HST/d | d | l | HST/d | d | l | ||
| 1 243007 | 3 | 1 | 1 243007 | 3 | 1 | ||
| mm | mm | mm | mm | mm | mm | ||
| 40/03 | | 6 | 80 | 50/03 | | 6 | 80 |
| 40/04 | | 7 | 80 | 50/04 | | 7 | 80 |
| 40/05 | | 8 | 80 | 50/05 | | 8 | 80 |
| 40/06 | | 9 | 80 | 50/06 | | 9 | 80 |
| 40/08 | | 11 | 80 | 50/08 | | 11 | 80 |
| 40/10 | | 13 | 80 | 50/10 | | 13 | 80 |
| 40/12 | | 15 | 80 | 50/12 | | 15 | 80 |
| 243008 HAIMER, shrink-fit chuck, Mini, extra slim, ZG100 | |||||||
| HST/d | d | l | HST/d | d | l | ||
| 1 243008 | 3 | 1 | 1 243008 | 3 | 1 | ||
| mm | mm | mm | mm | mm | mm | ||
| 50/05 | | 8 | 100 | 50/10 | | 13 | 100 |
| 50/06 | | 9 | 100 | 50/12 | | 15 | 100 |
| 50/08 | | 11 | 100 | — | — | — | — |
