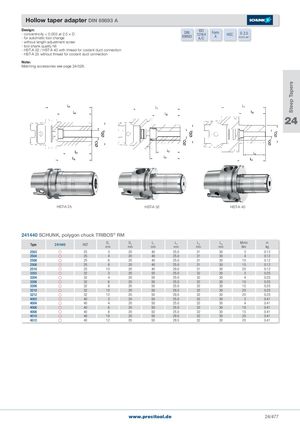

- for automatic tool change 69893 A
A/C 25.000 min-1 - without length adjustment screw - tool shank quality h6 - HST-A 32 / HST-A 40 with thread for coolant duct connection
- HST-A 25 without thread for coolant duct connection
Note: Matching accessories see page 24/528.
24
HST-A 25 HST-A 32 HST-A 40
241440 SCHUNK, polygon chuck TRIBOS® RM
| Type | 241440 | HST | D1 mm | D2 mm | L1 mm | L² mm | L3 mm | L8 mm | Mmin Nm | m kg |
| 2503 | | 25 | 3 | 20 | 40 | 25�0 | 31 | 30 | 3 | 0�12 |
| 2504 | | 25 | 4 | 20 | 40 | 25�0 | 31 | 30 | 4 | 0�12 |
| 2506 | | 25 | 6 | 20 | 40 | 25�0 | 31 | 30 | 10 | 0�12 |
| 2508 | | 25 | 8 | 20 | 40 | 25�0 | 31 | 30 | 15 | 0�12 |
| 2510 | | 25 | 10 | 20 | 40 | 29�0 | 31 | 30 | 20 | 0�12 |
| 3203 | | 32 | 3 | 20 | 50 | 25�0 | 32 | 30 | 3 | 0�25 |
| 3204 | | 32 | 4 | 20 | 50 | 25�0 | 32 | 30 | 4 | 0�25 |
| 3206 | | 32 | 6 | 20 | 50 | 25�0 | 32 | 30 | 10 | 0�25 |
| 3208 | | 32 | 8 | 20 | 50 | 25�0 | 32 | 30 | 15 | 0�25 |
| 3210 | | 32 | 10 | 20 | 50 | 29�5 | 32 | 30 | 20 | 0�25 |
| 3212 | | 32 | 12 | 20 | 50 | 29�5 | 32 | 30 | 20 | 0�25 |
| 4003 | | 40 | 3 | 20 | 50 | 25�0 | 32 | 30 | 3 | 0�41 |
| 4004 | | 40 | 4 | 20 | 50 | 25�0 | 32 | 30 | 4 | 0�41 |
| 4006 | | 40 | 6 | 20 | 50 | 25�0 | 32 | 30 | 10 | 0�41 |
| 4008 | | 40 | 8 | 20 | 50 | 25�0 | 32 | 30 | 15 | 0�41 |
| 4010 | | 40 | 10 | 20 | 50 | 29�5 | 32 | 30 | 20 | 0�41 |
| 4012 | | 40 | 12 | 20 | 50 | 29�5 | 32 | 30 | 20 | 0�41 |
