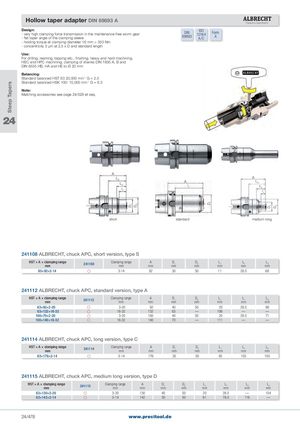

| - very high clamping force transmission in the maintenance-free worm gear | DIN | Form | |
| - flat taper angle of the clamping sleeve | 69893 | A/C | A |
- holding torque at clamping diameter 16 mm > 350 Nm - concentricity 3 µm at 2.5 x D and standard length Use: For drilling, reaming, tapping etc., finishing, heavy and hard machining,
HSC and HPC machining, clamping of shanks DIN 1835 A, B and DIN 6535 HB, HA and HE to Ø 20 mm
Balancing: Standard balanced HST 63 20,000 min-1 G = 2.5 Standard balanced HSK 100: 15,000 min-1 G = 6.3
Note: Matching accessories see page 24/529 et seq.
24
A L A
| 3 | A | L | |
| L | 3 | ||
| 2 | l | L | |
| l | 1 | 2 |
1 l 1
short standard medium long
241108 ALBRECHT, chuck APC, short version, type S
| HST × A × clamping range mm | 241108 | Clamping range mm | A mm D1 mm | D2 mm | L1 mm L² mm L3 mm |
| 63×92×2-14 | | 3-14 | 92 30 | 50 | 11 28�5 66 |
241112 ALBRECHT, chuck APC, standard version, type A
| HST × A × clamping range mm | 241112 | Clamping range mm | A mm | D1 mm | D2 mm | L1 mm | L² mm | L3 mm |
| 63×92×2-20 | | 3-20 | 92 | 40 | 50 | 20 | 28�5 | 66 |
| 63×132×16-32 | | 16-32 | 132 | 63 | — | 106 | — | — |
| 100×70×2-20 | | 3-20 | 100 | 40 | 50 | 20 | 28�5 | 71 |
| 100×140×16-32 | | 16-32 | 140 | 70 | — | 111 | — | — |
241114 ALBRECHT, chuck APC, long version, type C
| HST × A × clamping range mm | 241114 | Clamping range mm | A mm | D1 mm | D2 mm | L1 mm | L² mm L3 mm |
| 63×176×2-14 | | 3-14 | 176 | 30 | 50 | 85 | 103 150 |
241115 ALBRECHT, chuck APC, medium long version, type D
| HST × A × clamping range mm | 241115 | Clamping range mm | A mm | D1 mm | D2 mm | L1 mm | L² mm | L3 mm | L4 mm |
| 63×130×2-20 | | 3-20 | 130 | 40 | 50 | 20 | 28�5 | — | 104 |
| 63×142×2-14 | | 3-14 | 142 | 30 | 50 | 61 | 78�0 | 116 | — |
