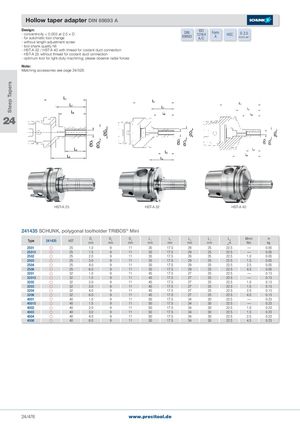

- for automatic tool change 69893 A
A/C 25.000 min-1 - without length adjustment screw - tool shank quality h6 - HST-A 32 / HST-A 40 with thread for coolant duct connection
- HST-A 25 without thread for coolant duct connection - optimum tool for light-duty machining; please observe radial forces
Note: Matching accessories see page 24/528.
24
HST-A 25 HST-A 32 HST-A 40
241435 SCHUNK, polygonal toolholder TRIBOS® Mini
| Type | 241435 | HST | D1 mm | D2 mm | D3 mm | L1 mm | L² mm | L3 mm | L7 mm | L8 mm | Mmin Nm | m kg |
| 2501 | | 25 | 1�0 | 9 | 11 | 35 | 17�5 | 29 | 25 | 22�5 | — | 0�05 |
| 25015 | | 25 | 1�5 | 9 | 11 | 35 | 17�5 | 29 | 25 | 22�5 | — | 0�05 |
| 2502 | | 25 | 2�0 | 9 | 11 | 35 | 17�5 | 29 | 25 | 22�5 | 1�0 | 0�05 |
| 2503 | | 25 | 3�0 | 9 | 11 | 35 | 17�5 | 29 | 25 | 22�5 | 1�5 | 0�05 |
| 2504 | | 25 | 4�0 | 9 | 11 | 35 | 17�5 | 29 | 25 | 22�5 | 2�5 | 0�05 |
| 2506 | | 25 | 6�0 | 9 | 11 | 35 | 17�5 | 29 | 25 | 22�5 | 4�5 | 0�05 |
| 3201 | | 32 | 1�0 | 9 | 11 | 45 | 17�5 | 27 | 25 | 22�5 | — | 0�13 |
| 32015 | | 32 | 1�5 | 9 | 11 | 45 | 17�5 | 27 | 25 | 22�5 | — | 0�13 |
| 3202 | | 32 | 2�0 | 9 | 11 | 45 | 17�5 | 27 | 25 | 22�5 | 1�0 | 0�13 |
| 3203 | | 32 | 3�0 | 9 | 11 | 45 | 17�5 | 27 | 25 | 22�5 | 1�5 | 0�13 |
| 3204 | | 32 | 4�0 | 9 | 11 | 45 | 17�5 | 27 | 25 | 22�5 | 2�5 | 0�13 |
| 3206 | | 32 | 6�0 | 9 | 11 | 45 | 17�5 | 27 | 25 | 22�5 | 4�5 | 0�13 |
| 4001 | | 40 | 1�0 | 9 | 11 | 50 | 17�5 | 34 | 30 | 22�5 | — | 0�23 |
| 40015 | | 40 | 1�5 | 9 | 11 | 50 | 17�5 | 34 | 30 | 22�5 | — | 0�23 |
| 4002 | | 40 | 2�0 | 9 | 11 | 50 | 17�5 | 34 | 30 | 22�5 | 1�0 | 0�23 |
| 4003 | | 40 | 3�0 | 9 | 11 | 50 | 17�5 | 34 | 30 | 22�5 | 1�5 | 0�23 |
| 4004 | | 40 | 4�0 | 9 | 11 | 50 | 17�5 | 34 | 30 | 22�5 | 2�5 | 0�23 |
| 4006 | | 40 | 6�0 | 9 | 11 | 50 | 17�5 | 34 | 30 | 22�5 | 4�5 | 0�23 |
