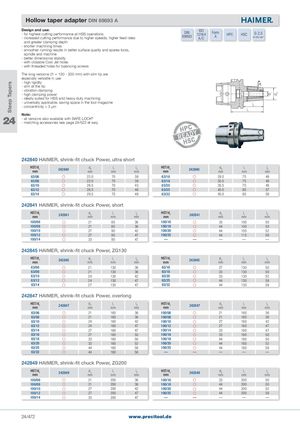

Общий каталог PRECITOOL

- for highest cutting performance at HSS operations - increased cutting performance due to higher speeds, higher feed rates and greater clamping depth - shorter machining times - smoother running results in better surface quality and spares tools, spindle and machine - better dimensional stability - with closable Cool Jet holes - with threaded holes for balancing screws The long versions (l1 = 130 - 200 mm) with slim tip are especially versatile in use - high rigidity - slim at the tip - vibration-damping - high clamping power - ideally suited for HSS and heavy-duty machining - universally applicable, saving space in the tool magazine - concentricity < 3 µm 24 Note: - all versions also available with SAFE-LOCK® - matching accessories see page 24/522 et seq.

DIN 69893

Form HPC HSC G 2,5

A A/C 25.000 min-1

l 2 l 1

242840 HAIMER, shrink-fit chuck Power, ultra short

HST/d1 mm	242840	d3 mm	l1 mm	l2 mm	HST/d1 mm	242840	d3 mm	l1 mm	l2 mm
63/06		22�0	70	38	63/16		29�5	75	49
63/08		22�0	70	38	63/18		35�5	75	49
63/10		26�5	70	43	63/20		35�5	75	49
63/12		26�5	70	46	63/25		45�0	85	57
63/14		29�5	75	48	63/32		45�0	85	59

242841 HAIMER, shrink-fit chuck Power, short

HST/d1 mm	242841	d3 mm	l1 mm	l2 mm	HST/d1 mm	242841	d3 mm	l1 mm	l2 mm
100/06		21	85	36	100/16		33	100	50
100/08		21	85	36	100/18		44	100	50
100/10		27	90	42	100/20		44	105	52
100/12		27	95	47	100/25		44	115	58
100/14		33	95	47	—	—	—	—	—

242845 HAIMER, shrink-fit chuck Power, ZG130

HST/d1 mm	242845	d3 mm	l1 mm	l2 mm	HST/d1 mm	242845	d3 mm	l1 mm	l2 mm
63/06		21	130	36	63/16		27	130	50
63/08		21	130	36	63/18		33	130	50
63/10		24	130	42	63/20		33	130	52
63/12		24	130	47	63/25		44	130	58
63/14		27	130	47	63/32		44	130	58

242847 HAIMER, shrink-fit chuck Power, overlong

HST/d1 mm	242847	d3 mm	l1 mm	l2 mm	HST/d1 mm	242847	d3 mm	l1 mm	l2 mm
63/06		21	160	36	100/06		21	160	36
63/08		21	160	36	100/08		21	160	36
63/10		24	160	42	100/10		27	160	42
63/12		24	160	47	100/12		27	160	47
63/14		27	160	47	100/14		33	160	47
63/16		27	160	50	100/16		33	160	50
63/18		33	160	50	100/18		44	160	50
63/20		33	160	52	100/20		44	160	52
63/25		44	160	58	100/25		44	160	58
63/32		44	160	58	—	—	—	—	—

242849 HAIMER, shrink-fit chuck Power, ZG200

HST/d1 mm	242849	d3 mm	l1 mm	l2 mm	HST/d1 mm	242849	d3 mm	l1 mm	l2 mm
100/06		21	200	36	100/16		33	200	50
100/08		21	200	36	100/18		44	200	50
100/10		27	200	42	100/20		44	200	52
100/12		27	200	47	100/25		44	200	58
100/14		33	200	47	—	—	—	—	—
