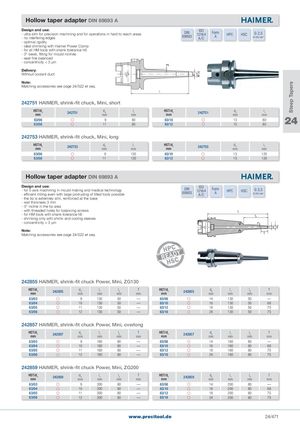

- ultra slim for precision machining and for operations in hard to reach areas	DIN	Form	HPC	HSC	G 2,5
- no interfering edges	69893	A

A/C 25.000 min-1 - optimal rigidity - ideal shrinking with Haimer Power Clamp - for all HM tools with shank tolerance h6

- 3° bevel, fitting for mould inclines - seat fine balanced - concentricity < 3 µm

Delivery: Without coolant duct

Note: Matching accessories see page 24/522 et seq. l 1

242751 HAIMER, shrink-fit chuck, Mini, short

HST/d		d	l	HST/d		d	l
	1 242751	3	1		1 242751	3	1
mm		mm	mm	mm		mm	24 mm
63/06		9	80	63/10		13	80
63/08		11	80	63/12		15	80
242753 HAIMER, shrink-fit chuck, Mini, long
HST/d		d	l	HST/d		d	l
	1 242753	3	1		1 242753	3	1
mm		mm	mm	mm		mm	mm
63/06		9	120	63/10		13	120
63/08		11	120	63/12		15	120
Hollow taper adapter DIN 69893 A
Design and use:					ISO

- for 5-axis machining in mould making and medical technology	DIN		Form	HPC	HSC	G 2,5
		12164
- efficient milling even with large protruding of tilted tools possible	69893		A

A/C 25.000 min-1 - the tip is extremely slim, reinforced at the base - wall thickness 3 mm - 3° incline in the tip area

- with threaded holes for balancing screws - for HM tools with shank tolerance h6 - shrinking only with shrink and cooling sleeves - concentricity < 3 µm

Note: Matching accessories see page 24/522 et seq. T

242855 HAIMER, shrink-fit chuck Power, Mini, ZG130

HST/d		d	l	l	T	HST/d		d	l	l	T
	1 242855	3	1	2			1 242855	3	1	2
mm		mm	mm	mm	mm	mm		mm	mm	mm	mm
63/03		9	130	50	—	63/08		14	130	50	—
63/04		10	130	50	—	63/10		16	130	50	68
63/05		11	130	50	—	63/12		18	130	50	75
63/06		12	130	50	—	63/16		24	130	50	75
242857 HAIMER, shrink-fit chuck Power, Mini, overlong
HST/d		d	l	l	T	HST/d		d	l	l	T
	1 242857	3	1	2			1 242857	3	1	2
mm		mm	mm	mm	mm	mm		mm	mm	mm	mm
63/03		9	160	80	—	63/08		14	160	80	—
63/04		10	160	80	—	63/10		16	160	80	68
63/05		11	160	80	—	63/12		18	160	80	75
63/06		12	160	80	—	63/16		24	160	80	75
242859 HAIMER, shrink-fit chuck Power, Mini, ZG200
HST/d		d	l	l	T	HST/d		d	l	l	T
	1 242859	3	1	2			1 242859	3	1	2
mm		mm	mm	mm	mm	mm		mm	mm	mm	mm
63/03		9	200	80	—	63/08		14	200	80	—
63/04		10	200	80	—	63/10		16	200	80	68
63/05		11	200	80	—	63/12		18	200	80	75
63/06		12	200	80	—	63/16		24	200	80	75
