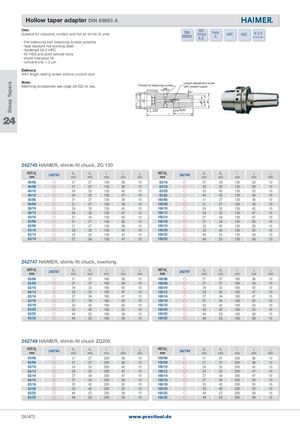

Suitable for inductive, contact and hot air shrink-fit units - fine balancing with balancing screws possible - heat resistant hot-working steel - hardened 54-2 HRC - for HSS and solid carbide tools - shank tolerance h6 - concentricity < 3 µm

Delivery: With length setting screw without coolant duct

Note: Matching accessories see page 24/522 et seq.

Thread for balancing screws

DIN Form HPC HSC G 2,5

69893 A A/C 25.000 min-1

Length adjustment screw with coolant supply

l 3 l l 2 24 1

242745 HAIMER, shrink-fit chuck, ZG 130

HST/d1 mm	242745	d3 mm	d4 mm	l1 mm	l2 mm	l3 mm	HST/d1 mm	242745	d3 mm	d4 mm	l1 mm	l2 mm	l3 mm
40/06		21	27	130	36	10	63/16		27	34	130	50	10
40/08		21	27	130	36	10	63/18		33	42	130	50	10
40/10		24	32	130	42	10	63/20		33	42	130	52	10
40/12		24	32	130	47	10	63/25		44	53	130	58	10
50/06		21	27	130	36	10	100/06		21	27	130	36	10
50/08		21	27	130	36	10	100/08		21	27	130	36	10
50/10		24	32	130	42	10	100/10		24	32	130	42	10
50/12		24	32	130	47	10	100/12		24	32	130	47	10
50/16		27	34	130	50	10	100/14		27	34	130	47	10
63/06		21	27	130	36	10	100/16		27	34	130	50	10
63/08		21	27	130	36	10	100/18		33	42	130	50	10
63/10		24	32	130	42	10	100/20		33	42	130	52	10
63/12		24	32	130	47	10	100/25		44	53	130	58	10
63/14		27	34	130	47	10	100/32		44	53	130	58	10

242747 HAIMER, shrink-fit chuck, overlong

HST/d1 mm	242747	d3 mm	d4 mm	l1 mm	l2 mm	l3 mm	HST/d1 mm	242747	d3 mm	d4 mm	l1 mm	l2 mm	l3 mm
63/06		21	27	160	36	10	100/06		21	27	160	36	10
63/08		21	27	160	36	10	100/08		21	27	160	36	10
63/10		24	32	160	42	10	100/10		24	32	160	42	10
63/12		24	32	160	47	10	100/12		24	32	160	47	10
63/14		27	34	160	47	10	100/14		27	34	160	47	10
63/16		27	34	160	50	10	100/16		27	34	160	50	10
63/18		33	42	160	50	10	100/18		33	42	160	50	10
63/20		33	42	160	52	10	100/20		33	42	160	52	10
63/25		44	53	160	58	10	100/25		44	53	160	58	10
63/32		44	53	160	58	10	100/32		44	53	160	58	10

242749 HAIMER, shrink-fit chuck ZG200

HST/d1 mm	242749	d3 mm	d4 mm	l1 mm	l2 mm	l3 mm	HST/d1 mm	242749	d3 mm	d4 mm	l1 mm	l2 mm	l3 mm
63/06		21	27	200	36	10	100/06		21	27	200	36	10
63/08		21	27	200	36	10	100/08		21	27	200	36	10
63/10		24	32	200	42	10	100/10		24	32	200	42	10
63/12		24	32	200	47	10	100/12		24	32	200	47	10
63/14		27	34	200	47	10	100/14		27	34	200	47	10
63/16		27	34	200	50	10	100/16		27	34	200	50	10
63/18		33	42	200	50	10	100/18		33	42	200	50	10
63/20		33	42	200	52	10	100/20		33	42	200	52	10
63/25		44	53	200	58	10	100/25		44	53	200	58	10
63/32		44	53	200	58	10	100/32		44	53	200	58	10
