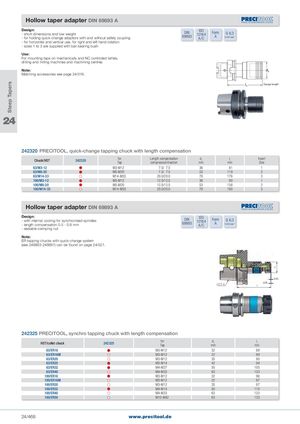

Общий каталог PRECITOOL - страница 473

Steep Tapers d1 Hollow taper adapter DIN 69893 A Design:- short dimensions and low weight- for holding quick-change adaptors with and without safety couplingDIN69893ISO12164A/CFormA G 6,3 8.000 min-1 - for horizontal and vertical use, for right and left hand rotation - sizes 1 to 3 are supplied with ball bearing bush Use: For mounting taps on mechanically and NC controlled lathes, drilling and milling machines and machining centres Note: Matching accessories see page 24/516. Gauge length 24 242320 PRECITOOL, quick-change tapping chuck with length compensation Chuck/HST 242320 for Length compensation d1 l1 InsertTapcompression/tractionmmmmSize 63/M3-12  M3-M12  7.5/ 7.5 36 81 1 63/M8-20  M5-M20  7.5/ 7.5 53 119 2 63/M14-33  M14-M33 20.0/20.0 78 176 3 100/M3-12  M3-M12 12.5/12.5 36 90 1 100/M8-20  M5-M20 12.5/12.5 53 138 2 100/M14-33  M14-M33 20.0/20.0 78 190 3 Hollow taper adapter DIN 69893 A Design:- with internal cooling for synchronised spindles- length compensation 0.5 - 0.8 mm DIN69893ISO12164A/CFormA G 6,3 8.000 min-1 - sealable clamping nut Note: ER tapping chucks with quick-change system (see 248883-248891) can be found on page 24/521. 0.50 0.50 HSKT-A l1 242325 PRECITOOL, synchro tapping chuck with length compensation HST/collet chuck 242325 forTap d1 l1mmmm 63/ER16  M3-M12 32 89 63/ER16M  M3-M12 22 89 63/ER20  M3-M12 35 90 63/ER25  M3-M14 42 94 63/ER32  M4-M27 50 105 63/ER40  M4-M33 63 133 100/ER16  M3-M12 32 96 100/ER16M  M3-M12 22 97 100/ER20  M3-M12 35 97 100/ER32  M4-M14 50 110 100/ER40  M4-M33 63 133 100/ER50  M10-M42 63 133 24/468 www.precitool.de
