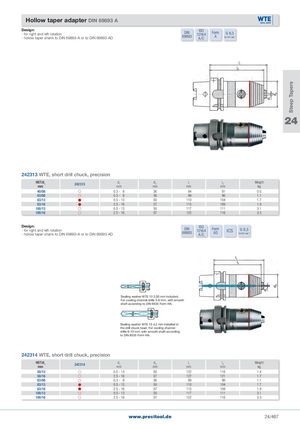

Общий каталог PRECITOOL - страница 472
Навигация
| - for right and left rotation | DIN | Form | G 6,3 |
| - hollow taper shank to DIN 69893-A or to DIN 69893-AD | 69893 | A |
A/C 25.000 min-1
24
242313 WTE, short drill chuck, precision
| HST/d1 mm | 242313 | d1 mm | d3 mm | l1 mm | l2 mm | Weight kg |
| 40/08 | | 0�3 - 8 | 36 | 94 | 91 | 0�5 |
| 63/08 | | 0�3 - 8 | 36 | 99 | 96 | 1�1 |
| 63/13 | | 0�5 - 13 | 50 | 110 | 104 | 1�7 |
| 63/16 | | 2�5 - 16 | 57 | 115 | 109 | 1�9 |
| 100/13 | | 0�5 - 13 | 50 | 117 | 111 | 3�1 |
| 100/16 | | 2�5 - 16 | 57 | 122 | 116 | 3�3 |
Design: ISO
| - for right and left rotation | DIN | Form | ICS | G 6,3 | |
| 12164 | |||||
| - hollow taper shank to DIN 69893-A or to DIN 69893-AD | 69893 | AD |
A/C 25.000 min-1
Sealing washer WTE 13 2.05 mm included. For cooling channel drills 3-6 mm, with smooth shaft according to DIN 6535 Form HA.
Sealing washer WTE 13 4.2 mm installed in the drill chuck head. For cooling channel drills 6-13 mm, with smooth shaft according to DIN 6535 Form HA.
242314 WTE, short drill chuck, precision
| HST/d1 mm | 242314 | d1 mm | d3 mm | l1 mm | l2 mm | Weight kg |
| 50/13 | | 0�5 - 13 | 50 | 122 | 116 | 1�4 |
| 50/16 | | 2�5 - 16 | 57 | 127 | 121 | 1�7 |
| 63/08 | | 0�3 - 8 | 36 | 99 | 96 | 1�1 |
| 63/13 | | 0�5 - 13 | 50 | 110 | 104 | 1�7 |
| 63/16 | | 2�5 - 16 | 57 | 115 | 109 | 1�9 |
| 100/13 | | 0�5 - 13 | 50 | 117 | 111 | 3�1 |
| 100/16 | | 2�5 - 16 | 57 | 122 | 116 | 3�3 |
