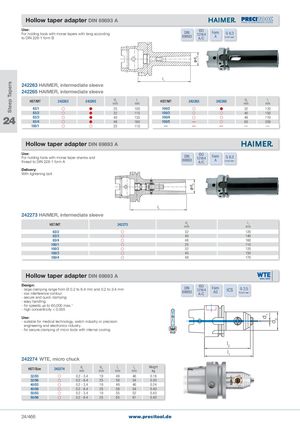

| For holding tools with morse tapers with tang according | DIN | Form | G 6,3 |
| to DIN 228-1 form B | 69893 | A |
A/C 8.000 min-1
l 1
242263 HAIMER, intermediate sleeve
242265 HAIMER, intermediate sleeve
| HST/MT | 242263 | 242265 | d | l | HST/MT | 242263 | 242265 | d | l |
| mm3 | mm1 | mm3 | mm1 | ||||||
| 63/1 | | | 25 | 100 | 100/2 | | | 32 | 120 |
| 24 63/2 | | | 32 | 115 | 100/3 | | | 40 | 150 |
| 63/3 | | | 40 | 135 | 100/4 | | | 48 | 170 |
| 63/4 | | | 48 | 160 | 100/5 | — | | 63 | 200 |
| 100/1 | | | 25 | 110 | — | — | — | — | — |
| Hollow taper adapter DIN 69893 A | |||||||||
| Use: | ISO |
| For holding tools with morse taper shanks and | DIN | Form | G 6,3 | |
| 69893 | 12164 | A | ||
| thread to DIN 228-1 form A | A/C | 8.000 min-1 |
Delivery: With tightening bolt
l 1
242273 HAIMER, intermediate sleeve
d l
| HST/MT | 242273 | 3 | 1 |
| mm | mm | ||
| 63/2 | | 32 | 120 |
| 63/3 | | 40 | 140 |
| 63/4 | | 48 | 160 |
| 100/1 | | 25 | 110 |
| 100/2 | | 32 | 120 |
| 100/3 | | 40 | 150 |
| 100/4 | | 48 | 170 |
| Hollow taper adapter DIN 69893 A | |||
| Design: | ISO |
| - large clamping range from Ø 0.2 to 6.4 mm and 0.2 to 3.4 mm | DIN | Form | ICS | G 2,5 | |
| 12164 | |||||
| - low interference contour | 69893 | AD |
A/C 25.000 min-1 - secure and quick clamping - easy handling - for speeds up to 60,000 max.-1
- high concentricity < 0.005
Use: - suitable for medical technology, watch industry or precision engineering and electronics industry - for secure clamping of micro tools with internal cooling
l
2
l
1
242274 WTE, micro chuck
| d | d | l | l | Weight | |||
| HST/Size | 242274 | 1 | 3 | 1 | 2 | ||
| mm | mm | mm | mm | kg | |||
| 32/03 | | 0�2 - 3�4 | 19 | 49 | 46 | 0�16 | |
| 32/06 | | 0�2 - 6�4 | 25 | 58 | 54 | 0�30 | |
| 40/03 | | 0�2 - 3�4 | 19 | 49 | 46 | 0�24 | |
| 40/06 | | 0�2 - 6�4 | 25 | 58 | 54 | 0�40 | |
| 50/03 | | 0�2 - 3�4 | 19 | 55 | 52 | 0�43 | |
| 50/06 | | 0�2 - 6�4 | 25 | 65 | 61 | 0�40 |
