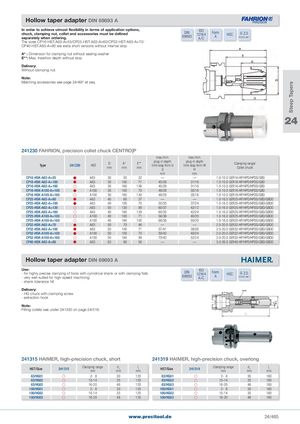

d1 Steep Tapers Hollow taper adapter DIN 69893 A In order to achieve utmost flexibility in terms of application options,chuck, clamping nut, collet and accessories must be definedseparately when ordering.DIN69893ISO12164A/CFormAHSCG 2,525.000 min-1 The sizes CP16-HST-A63-A=55/CP25-HST-A63-A=60/CP32-HST-A63-A=70/ CP40-HST-A63-A=80 are extra short versions without internal stop A* : Dimension for clamping nut without sealing washer E**: Max. Insertion depth without stop Delivery: Without clamping nut. Note: Matching accessories see page 24/497 et seq. 24 241230 FAHRION, precision collet chuck CENTRO|P max./min. max./min. Type 241230 HST Dmm A*mm E**mm plug-in depthlimit-stop form UGplug-in depthlimit-stop form WHClamping range/Collet chuck mm mm CP16-HSK-A63-A=55  A63 30 55 32 — — 1.0-10.0 GER16-HP/HPD/HPDD/GBD CP16-HSK-A63-A=100  A63 30 100 71 45/28 31/16 1.0-10.0 GER16-HP/HPD/HPDD/GBD CP16-HSK-A63-A=160  A63 30 160 136 45/28 31/16 1.0-10.0 GER16-HP/HPD/HPDD/GBD CP16-HSK-A100-A=100  A100 30 100 70 48/28 35/16 1.0-10.0 GER16-HP/HPD/HPDD/GBD CP16-HSK-A100-A=160  A100 30 160 130 48/28 35/16 1.0-10.0 GER16-HP/HPD/HPDD/GBD CP25-HSK-A63-A=60  A63 40 60 37 — — 1.0-16.0 GER25-HP/HPD/HPDD/GBD/GBDD CP25-HSK-A63-A=100  A63 40 100 70 55/35 37/24 1.0-16.0 GER25-HP/HPD/HPDD/GBD/GBDD CP25-HSK-A63-A=130  A63 50 130 89 60/37 42/12 1.0-16.0 GER25-HP/HPD/HPDD/GBD/GBDD CP25-HSK-A63-A=160  A63 40 160 128 60/35 42/24 1.0-16.0 GER25-HP/HPD/HPDD/GBD/GBDD CP25-HSK-A100-A=100  A100 40 100 71 56/38 40/20 1.0-16.0 GER25-HP/HPD/HPDD/GBD/GBDD CP25-HSK-A100-A=160  A100 40 160 105 68/38 50/20 1.0-16.0 GER25-HP/HPD/HPDD/GBD/GBDD CP32-HSK-A63-A=70  A63 50 70 46 — — 2.0-20.0 GER32-HP/HPD/HPDD/GBD/GBDD CP32-HSK-A63-A=100  A63 50 100 71 57/41 39/26 2.0-20.0 GER32-HP/HPD/HPDD/GBD/GBDD CP32-HSK-A100-A=100  A100 50 100 70 59/42 40/24 2.0-20.0 GER32-HP/HPD/HPDD/GBD/GBDD CP32-HSK-A100-A=160  A100 50 160 99 70/42 52/24 2.0-20.0 GER32-HP/HPD/HPDD/GBD/GBDD CP40-HSK-A63-A=80  A63 63 80 56 — — 3.0-26.0 GER40-HP/HPD/HPDD/GBD/GBDD Hollow taper adapter DIN 69893 A Use:- for highly precise clamping of tools with cylindrical shank or with clamping flats- very well suited for high-speed machiningDIN69893ISO12164A/CFormAHSCG 2,5 25.000 min-1 - shank tolerance h6 Delivery: - HG chuck with clamping screw - extraction hook Note: Fitting collets see under 241320 on page 24/518. l1 241315 HAIMER, high-precision chuck, short 241319 HAIMER, high-precision chuck, overlong HST/Size 241315 Clamping rangemm d1mm l1mm HST/Size 241319 Clamping rangemm d1mm l1mm 63/HG01  2- 8 30 120 63/HG01  2- 8 30 160 63/HG02  10-14 35 120 63/HG02  10-14 35 160 63/HG03  16-20 48 120 63/HG03  16-20 48 160 100/HG01  2- 8 30 120 100/HG01  2- 8 30 160 100/HG02  10-14 35 120 100/HG02  10-14 35 160 100/HG03  16-20 48 120 100/HG03  16-20 48 160 www.precitool.de 24/465
