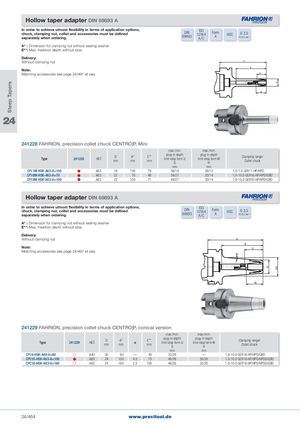

| In order to achieve utmost flexibility in terms of application options, chuck, clamping nut, collet and accessories must be defined | DIN 69893 | ISO 12164 Form A | HSC | G 2,5 1 |
| separately when ordering. | A/C | 25.000 min- |
A* : Dimension for clamping nut without sealing washer
E**: Max. Insertion depth without stop
Delivery: Without clamping nut A
Note: E Matching accessories see page 24/497 et seq. G
H
24
241228 FAHRION, precision collet chuck CENTRO|P, Mini
| Type | 241228 | HST | D mm | A mm | E mm | max�/min� plug-in depth limit-stop form U G | max�/min� plug-in depth limit-stop form W H | Clamping range/ Collet chuck |
| mm | mm | |||||||
| CP11M-HSK-A63-A=100 | | A63 | 16 | 100 | 78 | 36/18 | 26/12 | 1�0-7�0 GER11-HP/HPD |
| CP16M-HSK-A63-A=70 | | A63 | 22 | 70 | 46 | 34/27 | 20/14 | 1,0-10,0 GER16-HP/HPD/GBD |
| CP16M-HSK-A63-A=100 | | A63 | 22 | 100 | 71 | 44/27 | 30/14 | 1,0-10,0 GER16-HP/HPD/GBD |
Hollow taper adapter DIN 69893 A
| In order to achieve utmost flexibility in terms of application options, chuck, clamping nut, collet and accessories must be defined | DIN 69893 | ISO 12164 Form A | HSC | G 2,5 1 |
| separately when ordering. | A/C | 25.000 min- |
A* : Dimension for clamping nut without sealing washer
E**: Max. Insertion depth without stop
Delivery: Without clamping nut A E
Note: G Matching accessories see page 24/497 et seq. a
H
241229 FAHRION, precision collet chuck CENTRO|P, conical version
| Type | 241229 | HST | D mm | A mm | α | E mm | max�/min� plug-in depth limit-stop form U G | max�/min� plug-in depth limit-stop form W H | Clamping range/ Collet chuck |
| mm | mm | ||||||||
| CP16-HSK-A40-A=60 | | A40 | 30 | 60 | — | 40 | 32/28 | — | 1,0-10,0 GER16-HP/HPD/GBD |
| CPC16-HSK-A63-A=100 | | A63 | 24 | 100 | 4�5 | 75 | 48/28 | 35/20 | 1�0-10�0 GER16-HP/HPD/HPDD/GBD |
| CPC16-HSK-A63-A=160 | | A63 | 24 | 160 | 2�5 | 105 | 48/28 | 35/20 | 1�0-10�0 GER16-HP/HPD/HPDD/GBD |
