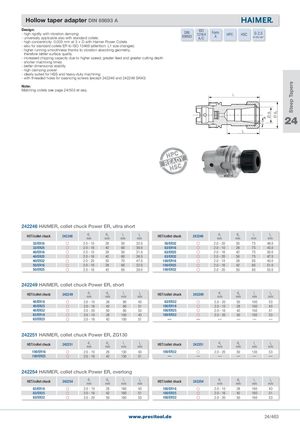

Общий каталог PRECITOOL

- high rigidity with vibration damping - universally applicable also with standard collets - high concentricity: 0.003 mm at 3 × D with Haimer Power Collets - also for standard collets ER to ISO 15488 (attention: L1 size changes) - higher running smoothness thanks to vibration absorbing geometry, therefore better surface quality - increased chipping capacity due to higher speed, greater feed and greater cutting depth - shorter machining times - better dimensional stability - high clamping power - ideally suited for HSS and heavy-duty machining - with threaded holes for balancing screws (except 242246 and 242249 SK40)

Note: Matching collets see page 24/503 et seq.

DIN 69893

A/C

Form A

HPC

l 1

HSC G 2,5 25.000 min-1

8° 24 l 2

242246 HAIMER, collet chuck Power ER, ultra short

HST/collet chuck	242246	d1 mm	d3 mm	l1 mm	l2 mm	HST/collet chuck	242246	d1 mm	d3 mm	l1 mm	l2 mm
32/ER16		2�0 - 10	28	50	32�0	50/ER32		2�0 - 20	50	75	48�0
32/ER25		2�0 - 16	42	60	39�0	63/ER16		2�0 - 10	28	75	43�0
40/ER16		2�0 - 10	28	50	31�0	63/ER25		2�0 - 16	42	75	50�0
40/ER25		2�0 - 16	42	60	38�5	63/ER32		2�0 - 20	50	75	47�5
40/ER32		2�0 - 20	50	70	47�0	100/ER16		2�0 - 10	28	85	43�0
50/ER16		2�0 - 10	28	60	32�0	100/ER25		2�0 - 16	42	85	51�0
50/ER25		2�0 - 16	42	65	39�0	100/ER32		2�0 - 20	50	85	53�0

242249 HAIMER, collet chuck Power ER, short

HST/collet chuck	242249	d1 mm	d3 mm	l1 mm	l2 mm	HST/collet chuck	242249	d1 mm	d3 mm	l1 mm	l2 mm
40/ER16		2�0 - 10	28	80	43	63/ER32		2�0 - 20	50	100	53
40/ER25		2�0 - 16	42	80	51	100/ER16		2�0 - 10	28	100	43
40/ER32		2�0 - 20	50	80	53	100/ER25		2�0 - 16	42	100	51
63/ER16		2�0 - 10	28	100	43	100/ER32		2�0 - 20	50	100	53
63/ER25		2�0 - 16	42	100	51	—	—	—	—	—	—

242251 HAIMER, collet chuck Power ER, ZG130

HST/collet chuck	242251	d1 mm	d3 mm	l1 mm	l2 mm	HST/collet chuck	242251	d1 mm	d3 mm	l1 mm	l2 mm
100/ER16		2�0 - 10	28	130	43	100/ER32		2�0 - 20	50	130	53
100/ER25		2�0 - 16	42	130	51	—	—	—	—	—	—

242254 HAIMER, collet chuck Power ER, overlong

HST/collet chuck	242254	d1 mm	d3 mm	l1 mm	l2 mm	HST/collet chuck	242254	d1 mm	d3 mm	l1 mm	l2 mm
63/ER16		2�0 - 10	28	160	43	100/ER16		2�0 - 10	28	160	43
63/ER25		2�0 - 16	42	160	51	100/ER25		2�0 - 16	42	160	51
63/ER32		2�0 - 20	50	160	53	100/ER32		2�0 - 20	50	160	53
