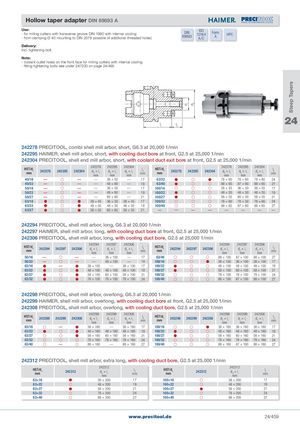

d1 d3 Steep Tapers Hollow taper adapter DIN 69893 A Use:- for milling cutters with transverse groove DIN 1880 with internal cooling- from clamping Ø 40 mounting to DIN 2079 possible (4 additional threaded holes)DIN69893ISO12164A/CFormA HPC Delivery: Incl. tightening bolt. Note: - coolant outlet holes on the front face for milling cutters with internal cooling - fitting tightening bolts see under 247200 on page 24/495 l1 l2 24 242278 PRECITOOL, combi shell mill arbor, short, G6.3 at 20,000 1/min 242295 HAIMER, shell mill arbor, short, with cooling duct bore at front, G2.5 at 25,000 1/min 242304 PRECITOOL, shell end mill arbor, short, with coolant duct exit bore at front, G2.5 at 25,000 1/min HST/d1mm 242278 242295 242304 242278d ×l3 1mm 242295d ×l3 1mm 242304d ×l3 1mm l2mm HST/d1mm 242278 242295 242304 242278d ×l3 1mm 242295d ×l3 1mm 242304d ×l3 1mm l2mm 40/16 —  — — 36 × 50 — 17 63/32    78 × 60 78 × 60 78 × 60 24 40/22 —  — — 48 × 60 — 19 63/40    88 × 65 87 × 60 88 × 65 27 50/16 —  — — 36 × 50 — 17 100/16    28 × 55 36 × 50 38 × 55 17 50/22 —  — — 48 × 60 — 19 100/22    48 × 55 48 × 50 48 × 55 19 50/27 —  — — 60 × 60 — 21 100/27    58 × 55 60 × 50 58 × 55 21 63/16    38 × 45 36 × 50 38 × 45 17 100/32    78 × 60 78 × 50 78 × 60 24 63/22    48 × 50 48 × 50 48 × 50 19 100/40    88 × 65 87 × 60 88 × 65 27 63/27    58 × 55 60 × 60 58 × 55 21 — — — — — — — — 242294 PRECITOOL, shell mill arbor, long, G6.3 at 20,000 1/min 242297 HAIMER, shell mill arbor, long, with cooling duct bore at front, G2.5 at 25,000 1/min 242306 PRECITOOL, shell mill arbor, long, with cooling duct bore, G2.5 at 25,000 1/min HST/d1mm 242294 242297 242306 242294d3 × l1mm 242297d3 × l1mm 242306d3 × l1mm l2mm HST/d1mm 242294 242297 242306 242294d3 × l1mm 242297d3 × l1mm 242306d3 × l1mm l2mm 50/16 —  — — 36 × 100 — 17 63/40    88 × 100 87 × 100 88 × 100 27 50/22 —  — — 48 × 100 — 19 100/16    38 × 100 36 × 100 38 × 100 17 63/16  —  38 × 100 — 38 × 100 17 100/22    48 × 100 48 × 100 48 × 100 19 63/22    48 × 100 48 × 100 48 × 100 19 100/27    58 × 100 60 × 100 58 × 100 21 63/27    58 × 100 60 × 100 58 × 100 21 100/32    78 × 100 78 × 100 78 × 100 24 63/32    78 × 100 78 × 100 78 × 100 24 100/40    88 × 100 87 × 100 88 × 100 27 242298 PRECITOOL, shell mill arbor, overlong, G6.3 at 20,000 1/min 242299 HAIMER, shell mill arbor, overlong, with cooling duct bore at front, G2.5 at 25,000 1/min 242308 PRECITOOL, shell mill arbor, overlong, with cooling duct bore, G2.5 at 25,000 1/min HST/d1mm 242298 242299 242308 242298d3 × l1mm 242299d3 × l1mm 242308d3 × l1mm l2mm HST/d1mm 242298 242299 242308 242298d3 × l1mm 242299d3 × l1mm 242308d3 × l1mm l2mm 63/16  —  38 × 160 — 38 × 160 17 100/16    38 × 160 36 × 160 38 × 160 17 63/22    48 × 160 48 × 160 48 × 160 19 100/22    48 × 160 48 × 160 48 × 160 19 63/27    58 × 160 60 × 160 58 × 160 21 100/27    58 × 160 60 × 160 58 × 160 21 63/32    78 × 160 78 × 160 78 × 160 24 100/32    78 × 160 78 × 160 78 × 160 24 63/40  —  88 × 160 — 88 × 160 27 100/40    88 × 160 87 × 160 88 × 160 27 242312 PRECITOOL, shell mill arbor, extra long, with cooling duct bore, G2.5 at 25,000 1/min HST/d1mm 242312 242312d3 × l1mm l2mm HST/d1mm 242312 242312d3 × l1mm l2mm 63×16  38 × 200 17 100×16  38 × 200 17 63×22  48 × 200 19 100×22  48 × 200 19 63×27  58 × 200 21 100×27  58 × 200 21 63×32  78 × 200 24 100×32  78 × 200 24 63×40  88 × 200 27 100×40  88 × 200 27 www.precitool.de 24/459
