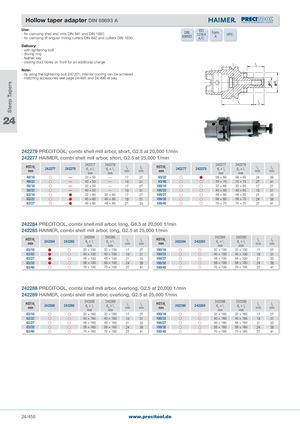

Steep Tapers d1 d3 Hollow taper adapter DIN 69893 A Use:- for clamping shell end mills DIN 841 and DIN 1880- for clamping of angular milling cutters DIN 842 and cutters DIN 1830 DIN69893 ISO12164A/CFormA HPC Delivery: - with tightening bolt - driving ring - feather key - cooling duct bores on front for an additional charge l 3 Note: - by using the tightening bolt 247201, internal cooling can be achieved - matching accessories see page 24/495 and 24/496 et seq. l1 l2 24 242279 PRECITOOL, combi shell mill arbor, short, G2.5 at 20,000 1/min 242277 HAIMER, combi shell mill arbor, short, G2.5 at 25,000 1/min HST/d1mm 242277 242279 242277d ×l3 1mm 242279d ×l3 1mm l 2mm l 3mm HST/d1mm 242277 242279 242277d ×l3 1mm 242279d ×l3 1mm l 2mm l 3mm 40/16  — 32 × 50 — 17 27 63/32   58 × 60 58 × 65 24 38 40/22  — 40 × 50 — 19 31 63/40   70 × 70 70 × 70 27 41 50/16  — 32 × 50 — 17 27 100/16   32 × 60 32 × 65 17 27 50/22  — 40 × 50 — 19 31 100/22   40 × 60 40 × 65 19 31 63/16   32 × 60 32 × 60 17 27 100/27   48 × 60 48 × 65 21 33 63/22   40 × 60 40 × 60 19 31 100/32   58 × 60 58 × 70 24 38 63/27   48 × 60 48 × 60 21 33 100/40   70 × 70 70 × 70 27 41 242284 PRECITOOL, combi shell mill arbor, long, G6.3 at 20,000 1/min 242285 HAIMER, combi shell mill arbor, long, G2.5 at 25,000 1/min HST/d1mm 242284 242285 242284d3 × l1mm 242285d3 × l1mm l l2 3mmmm HST/d1mm 242284 242285 242284d3 × l1mm 242285d3 × l1mm l l2 3mmmm 63/16   32 × 100 32 × 100 17 27 100/16   32 × 100 32 × 100 17 27 63/22   40 × 100 40 × 100 19 31 100/22   40 × 100 40 × 100 19 31 63/27   48 × 100 48 × 100 21 33 100/27   48 × 100 48 × 100 21 33 63/32   58 × 100 58 × 100 24 38 100/32   58 × 100 58 × 100 24 38 63/40   70 × 100 70 × 100 27 41 100/40   70 × 100 70 × 100 27 41 242288 PRECITOOL, combi shell mill arbor, overlong, G2.5 at 20,000 1/min 242289 HAIMER, combi shell mill arbor, overlong, G2.5 at 25,000 1/min HST/d1mm 242288 242289 242288d3 × l1mm 242289d3 × l1mm l2 l3mmmm HST/d1mm 242288 242289 242288d3 × l1mm 242289d3 × l1mm l2 l3mmmm 63/16   32 × 160 32 × 160 17 27 100/16   32 × 160 32 × 160 17 27 63/22   40 × 160 40 × 160 19 31 100/22   40 × 160 40 × 160 19 31 63/27   48 × 160 48 × 160 21 33 100/27   48 × 160 48 × 160 21 33 63/32   58 × 160 58 × 160 24 38 100/32   58 × 160 58 × 160 24 38 63/40   70 × 160 70 × 160 27 41 100/40   70 × 160 70 × 160 27 41 24/458 www.precitool.de
