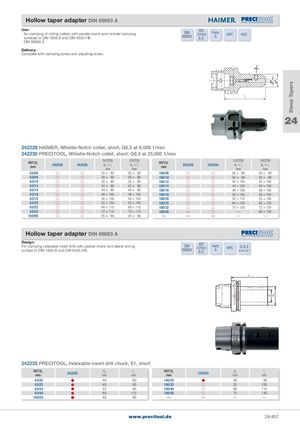

- for clamping of milling cutters with parallel shank and inclined clamping	DIN		Form	HPC	HSC
surfaces to DIN 1835-E and DIN 6535-HE.	69893	A/C	A

- DIN 69882-5 Delivery: Complete with clamping screw and adjusting screw.

l 1

24

242228 HAIMER, Whistle-Notch collet, short, G6.3 at 8,000 1/min

242230 PRECITOOL, Whistle-Notch collet, short, G6.3 at 25,000 1/min

HST/d1 mm	242228	242230	242228 d3× l1 mm	242230 d3× l1 mm	HST/d1 mm	242228	242230	242228 d3× l1 mm	242230 d3× l1 mm
63/06			25× 80	25× 80	100/08			28× 90	28× 90
63/08			28× 80	28× 80	100/10			35× 90	35× 90
63/10			35× 80	35× 80	100/12			42 × 100	42 × 100
63/12			42× 90	42× 90	100/14			44 × 100	44 × 100
63/14			44× 90	44× 90	100/16			48 × 100	48 × 100
63/16			48 × 100	48 × 100	100/18			50 × 100	50 × 100
63/18			50 × 100	50 × 100	100/20			52 × 110	52 × 100
63/20			52 × 100	52 × 100	100/25			64 × 120	65 × 120
63/25			64 × 110	65 × 110	100/32			72 × 120	72 × 120
63/32			72 × 110	72 × 115	100/40	—		—	80 × 130
100/06			25× 90	25× 90	—	—	—	—	—

Hollow taper adapter DIN 69893 A

Design: ISO

For clamping indexable insert drills with parallel shank and lateral driving	DIN		Form	HPC	G 6,3
	69893	12164	A
surface to DIN 1835-B and DIN 6535-HB.		A/C			20.000 min

-1

l 1

242235 PRECITOOL, indexable insert drill chuck, E1, short

HST/d1 mm	242235	d3 mm	l1 mm	HST/d1 mm	242235	d3 mm	l1 mm
63/20		40	80	100/25		45	95
63/25		45	90	100/32		52	100
63/32		52	90	100/40		60	110
63/40		60	110	100/50		75	130
100/20		40	90	—	—	—	—
