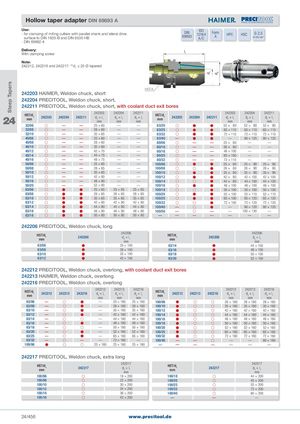

- for clamping of milling cutters with parallel shank and lateral driveDINFormHPCHSCG 2,5
surface to DIN 1835-B and DIN 6535-HB69893A

A/C 25.000 min-1 - DIN 69882-4 Delivery: l With clamping screw 1

Note: 242212, 242216 and 242217: **d ≤ 25 Ø tapered 1

HST-A

242203 HAIMER, Weldon chuck, short

242204 PRECITOOL, Weldon chuck, short,

242211 PRECITOOL, Weldon chuck, short, with coolant duct exit bores

HST/d1 mm242203242204242211242203 d3× l1 mm242204 d3× l1 mm242211 d3× l1 mmHST/d1 mm242203242204242211242203 d3× l1 mm242204 d3× l1 mm242211 d3× l1 mm
32/06——25 × 60——63/2052× 8052 ×8052× 80
32/08——28 × 60——63/2565 × 11065 × 11065 × 110
32/10——35 × 65——63/3272 × 11072 × 11072 × 110
40/06——25 × 60——63/40——80 × 12580 × 125
40/08——28 × 60——80/06——25× 80——
40/10——35 × 60——80/10——38× 80——
40/12——42 × 70——80/16——48 × 100——
40/14——44 × 75——80/25——65 × 100——
40/16——48 × 75——80/32——72 × 110——
50/06——25 × 65——100/0625× 8025 ×9025× 90
50/08——28 × 65——100/0828× 8028 ×9028× 90
50/10——35 × 65——100/1035× 8035 ×9035× 90
50/12——42 × 80——100/1242× 8042 × 10042×100
50/16——48 × 80——100/1444× 8044 × 10044×100
50/20——52 × 80——100/1648 × 10048 × 10048 × 100
63/0625 × 6525 × 6525 × 65100/1850 × 10050 × 10050 × 100
63/0828 × 6528 × 6528 × 65100/2052 × 10052 × 11052 × 110
63/1035 × 6535 × 6535 × 65100/2565 × 10065 × 12065 × 120
63/1242 × 8042 × 8042 × 80100/3272 × 10072 × 12072 × 120
63/1444 × 8044 × 8044 × 80100/40——80 × 12080 × 120
63/1648 × 8048 × 8048 × 80100/50———100 × 130—
63/1850 × 8050 × 8050 × 80———————

242206 PRECITOOL, Weldon chuck, long

HST/d1 mm242206242206 d3× l1 mmHST/d1 mm242206242206 d3× l1 mm
63/0625 × 10063/1444 × 100
63/0828 × 10063/1648 × 100
63/1035 × 10063/1850 × 100
63/1242 × 10063/2052 × 100

242212 PRECITOOL, Weldon chuck, overlong, with coolant duct exit bores

242213 HAIMER, Weldon chuck, overlong

242216 PRECITOOL, Weldon chuck, overlong

HST/d1 mm242212242213242216242212 d3× l1 mm242213 d3× l1 mm242216 d3× l1 mmHST/d1 mm242212242213242216242212 d3× l1 mm242213 d3× l1 mm242216 d3× l1 mm
63/06——25 × 16025 × 160100/0828 × 16028 × 16028 × 160
63/08——28 × 16028 × 160100/1035 × 16035 × 16035 × 160
63/10——35 × 16035 × 160100/1242 × 16042 × 16042 × 160
63/12——42 × 16042 × 160100/1444 × 16044 × 16044 × 160
63/14——44 × 16044 × 160100/1648 × 16048 × 16048 × 160
63/16——48 × 16048 × 160100/1850 × 16050 × 16050 × 160
63/18——50 × 16050 × 160100/2052 × 16052 × 16052 × 160
63/20——52 × 16052 × 160100/2565 × 16065 × 16065 × 160
63/25——65 × 16065 × 160100/3272 × 16072 × 16072 × 160
63/32———72 × 160—100/40————80 × 160
100/0625 × 16025 × 16025 × 160———————

242217 PRECITOOL, Weldon chuck, extra long

HST/d1 mm242217242217 d3× l1 mmHST/d1 mm242217242217 d3× l1 mm
100/0618 × 200100/1844 × 200
100/0822 × 200100/2045 × 200
100/1030 × 200100/2555 × 200
100/1234 × 200100/3272 × 200
100/1436 × 200100/4080 × 200
100/1642 × 200———
