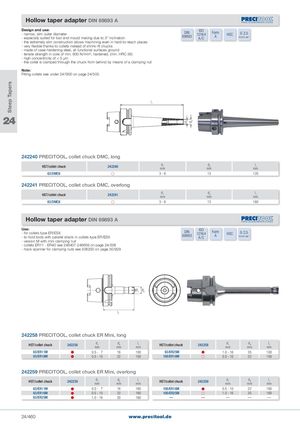

| - narrow, slim outer diameter | DIN | Form | HSC | G 2,5 |
| - especially suited for tool and mould making due to 3° inclination | 69893 | A |
A/C 25.000 min-1 - the extremely slim construction allows machining even in hard-to-reach places - very flexible thanks to collets instead of shrink-fit chucks - made of case-hardening steel, all functional surfaces ground
- tensile strength in core of min. 800 N/mm², hardened, (min. HRC 56) - high concentricity of < 5 µm - the collet is clamped through the chuck from behind by means of a clamping nut
Note: Fitting collets see under 247900 on page 24/503.
l 1
24
242240 PRECITOOL, collet chuck DMC, long
| HST/collet chuck | 242240 | d | d | l | ||
| mm1 | mm3 | mm1 | ||||
| 63/DMC6 | | 3 - 6 | 13 | 120 | ||
| 242241 PRECITOOL, collet chuck DMC, overlong | ||||||
| d | d | l | ||||
| HST/collet chuck | 242241 | 1 | 3 | 1 | ||
| mm | mm | mm | ||||
| 63/DMC6 | | 3 - 6 | 13 | 160 | ||
| Hollow taper adapter DIN 69893 A | ||||||
| Use: | ISO |
| - for collets type ER/ESX | DIN | Form | G 2,5 | ||
| 12164 | HSC | ||||
| - to hold tools with parallel shank in collets type ER/ESX | 69893 | A |
A/C 25.000 min-1 - version M with mini clamping nut - collets ER11 - ER40 see 248407-248659 on page 24/508 - hook spanner for clamping nuts see 506200 on page 50/929
d d 1 3
l 1
242258 PRECITOOL, collet chuck ER Mini, long
| HST/collet chuck | 242258 | d1 mm | d3 mm | l1 mm | HST/collet chuck | 242258 | d1 mm | d3 mm l1 mm |
| 63/ER11M | | 0�5 - 7 | 16 | 100 | 63/ER25M | | 1�0 - 16 | 35 100 |
| 63/ER16M | | 0�5 - 10 | 22 | 100 | 100/ER16M | | 0�5 - 10 | 22 100 |
242259 PRECITOOL, collet chuck ER Mini, overlong
| HST/collet chuck | 242259 | d1 mm | d3 mm | l1 mm | HST/collet chuck | 242259 | d1 mm | d3 mm | l1 mm |
| 63/ER11M | | 0�5 - 7 | 16 | 160 | 100/ER16M | | 0�5 - 10 | 22 | 160 |
| 63/ER16M | | 0�5 - 10 | 22 | 160 | 100/ER25M | | 1�0 - 16 | 35 | 160 |
| 63/ER25M | | 1�0 - 16 | 35 | 160 | — | — | — | — | — |
