Hollow taper shank DIN 69893

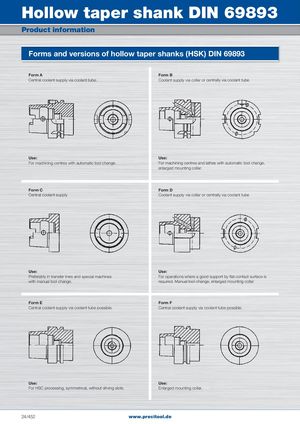

Forms and versions of hollow taper shanks (HSK) DIN 69893

Form A Form B Central coolant supply via coolant tube. Coolant supply via collar or centrally via coolant tube

Use: Use: For machining centres with automatic tool change. For machining centres and lathes with automatic tool change, enlarged mounting collar.

Form C Form D Central coolant supply Coolant supply via collar or centrally via coolant tube

Use: Use: Preferably in transfer lines and special machines For operations where a good support by flat contact surface is with manual tool change. required. Manual tool change, enlarged mounting collar

Form E Form F Central coolant supply via coolant tube possible. Central coolant supply via coolant tube possible.

Use: Use: For HSC processing, symmetrical, without driving slots. Enlarged mounting collar.
