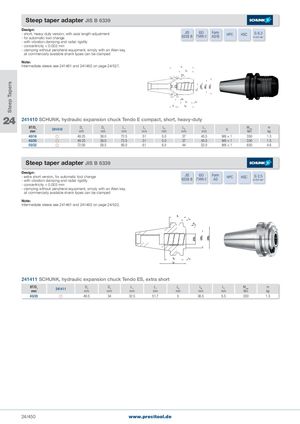

Общий каталог PRECITOOL - страница 455
Навигация
| - short, heavy-duty version, with axial length adjustment | JIS | ISO | Form | HPC | HSC | G 6,3 |
| - for automatic tool change | 6339 B | 7388-2 | AD/B |
15.000 min-1 - with vibration damping and radial rigidity - concentricity < 0.003 mm - clamping without peripheral equipment, simply with an Allen key,
all commercially available shank types can be clamped
Note: Intermediate sleeve see 241461 and 241462 on page 24/527.
24 241410 SCHUNK, hydraulic expansion chuck Tendo E compact, short, heavy-duty
| BT/D1 mm | 241410 | D2 mm | D4 mm | L1 mm | L² mm | L5 mm | L6 mm | L7 mm | G | Mmin Nm | m kg |
| 40/16 | | 49�25 | 38�0 | 72�5 | 51 | 5�0 | 37 | 45�5 | M8 × 1 | 350 | 1�3 |
| 40/20 | | 49�25 | 38�0 | 72�5 | 51 | 5�0 | 37 | 45�5 | M8 × 1 | 330 | 1�5 |
| 50/32 | | 72�00 | 58�5 | 90�0 | 61 | 6�0 | 44 | 52�0 | M8 × 1 | 650 | 4�6 |
Steep taper adapter JIS B 6339
Design:
| - extra short version, for automatic tool change | JIS | ISO | Form | HPC | HSC | G 2,5 |
| - with vibration damping and radial rigidity | 6339 B | 7388-2 | AD |
25.000 min-1 - concentricity < 0.003 mm - clamping without peripheral equipment, simply with an Allen key, all commercially available shank types can be clamped
Note: Intermediate sleeve see 241461 and 241462 on page 24/522.
241411 SCHUNK, hydraulic expansion chuck Tendo ES, extra short
| BT/D1 mm | 241411 | D2 mm | D4 mm | L1 mm | L² mm | L5 mm | L6 mm | L7 mm | Mmin Nm | m kg |
| 40/20 | | 49�5 | 34 | 32�5 | 51�7 | 5 | 36�5 | 5�5 | 330 | 1�3 |
