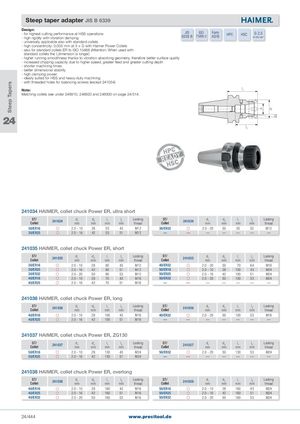

- for highest cutting performance at HSS operations	JIS	ISO	Form	HPC	HSC	G 2,5
- high rigidity with vibration damping	6339 B	7388-2	AD/B

25.000 min-1 - universally applicable also with standard collets - high concentricity: 0.003 mm at 3 × D with Haimer Power Collets - also for standard collets ER to ISO 15488 (Attention: When used with

standard collets the I dimension is longer) - higher running smoothness thanks to vibration absorbing geometry, therefore better surface quality1 - increased chipping capacity due to higher speed, greater feed and greater cutting depth - shorter machining times - better dimensional stability - high clamping power - ideally suited for HSS and heavy-duty machining - with threaded holes for balancing screws (except 241034)

Note: l 1 Matching collets see under 248910, 248920 and 248930 on page 24/514.

24

l 2

d d 1 3 8°

241034 HAIMER, collet chuck Power ER, ultra short

ST/ Collet	241034	d1 mm	d3 mm	l1 mm	l2 mm	Locking thread	ST/ Collet	241034	d1 mm	d3 mm	l1 mm	l2 mm	Locking thread
30/ER16		2�0 - 10	28	55	43	M12	30/ER32		2�0 - 20	50	55	53	M12
30/ER25		2�0 - 16	42	55	51	M12	—	—	—	—	—	—	—

241035 HAIMER, collet chuck Power ER, short

ST/ Collet	241035	d1 mm	d3 mm	l1 mm	l2 mm	Locking thread	ST/ Collet	241035	d1 mm	d3 mm	l1 mm	l2 mm	Locking thread
30/ER16		2�0 - 10	28	80	43	M12	40/ER32		2�0 - 20	50	70	64	M16
30/ER25		2�0 - 16	42	80	51	M12	50/ER16		2�0 - 10	28	100	43	M24
30/ER32		2�0 - 20	50	80	53	M12	50/ER25		2�0 - 16	42	100	51	M24
40/ER16		2�0 - 10	28	70	43	M16	50/ER32		2�0 - 20	50	100	53	M24
40/ER25		2�0 - 16	42	70	51	M16	—	—	—	—	—	—	—

241036 HAIMER, collet chuck Power ER, long

ST/ Collet	241036	d1 mm	d3 mm	l1 mm	l2 mm	Locking thread	ST/ Collet	241036	d1 mm	d3 mm	l1 mm	l2 mm	Locking thread
40/ER16		2�0 - 10	28	100	43	M16	40/ER32		2�0 - 20	50	100	53	M16
40/ER25		2�0 - 16	42	100	51	M16	—	—	—	—	—	—	—

241037 HAIMER, collet chuck Power ER, ZG130

ST/ Collet	241037	d1 mm	d3 mm	l1 mm	l2 mm	Locking thread	ST/ Collet	241037	d1 mm	d3 mm	l1 mm	l2 mm	Locking thread
50/ER16		2�0 - 10	28	130	43	M24	50/ER32		2�0 - 20	50	130	53	M24
50/ER25		2�0 - 16	42	130	51	M24	—	—	—	—	—	—	—

241038 HAIMER, collet chuck Power ER, overlong

ST/ Collet	241038	d1 mm	d3 mm	l1 mm	l2 mm	Locking thread	ST/ Collet	241038	d1 mm	d3 mm	l1 mm	l2 mm	Locking thread
40/ER16		2�0 - 10	28	160	43	M16	50/ER16		2�0 - 10	28	160	43	M24
40/ER25		2�0 - 16	42	160	51	M16	50/ER25		2�0 - 16	42	160	51	M24
40/ER32		2�0 - 20	50	160	53	M16	50/ER32		2�0 - 20	50	160	53	M24
