Общий каталог PRECITOOL

- for highest cutting performance at HSS operations	JIS	ISO	Form
- high rigidity with vibration damping	6339 B	7388-2	AD

- high concentricity of 0.003 mm at 3 × D with Haimer Power Collets - also for standard collets ER to ISO 15488 (Attention: When used with standard collets the I dimension is longer) - higher running smoothness thanks to vibration absorbing geometry, 1

therefore better surface quality - increased chipping capacity due to higher speed, greater feed and greater cutting depth - shorter machining times - better dimensional stability - high clamping power - ideally suited for HSS and heavy-duty machining - with threaded holes for balancing screws - BT30 balanced U < 1gmm - BT40 balanced G 2.5 30,000 min-1 - BT50 balanced G 2.5 25,000 min-1

Note: - matching collets see under 248910, 248920 and 248930 on page 24/514 - fitting tightening bolts see under 246542 on page 24/498

G 2,5 G 2,5 25.000 min-1 30.000 min-1

24

l 1

l 2

240900 HAIMER, collet chuck HP, ultra short

BT/collet chuck	240900	d1 mm	d3 mm	l1 mm	l2 mm	Locking thread	BT/collet chuck	240900	d1 mm	d3 mm	l1 mm	l2 mm	Locking thread
30/ER16		2�0 - 10	28	55	43	M12	30/ER32		2�0 - 20	50	55	53	M12
30/ER25		2�0 - 16	42	55	51	M12	—	—	—	—	—	—	—

240902 HAIMER, collet chuck HP, short

BT/collet chuck	240902	d1 mm	d3 mm	l1 mm	l2 mm	Locking thread	BT/collet chuck	240902	d1 mm	d3 mm	l1 mm	l2 mm	Locking thread
30/ER16		2�0 - 10	28	55	43	M12	40/ER32		2�0 - 20	50	70	53	M16
30/ER25		2�0 - 16	42	55	51	M12	50/ER16		2�0 - 10	28	100	43	M24
30/ER32		2�0 - 20	50	55	53	M12	50/ER25		2�0 - 16	42	100	51	M24
40/ER16		2�0 - 10	28	70	43	M16	50/ER32		2�0 - 20	50	100	53	M24
40/ER25		2�0 - 16	42	70	51	M16	—	—	—	—	—	—	—

240904 HAIMER, collet chuck HP, long

BT/collet chuck	240904	d1 mm	d3 mm	l1 mm	l2 mm	Locking thread	BT/collet chuck	240904	d1 mm	d3 mm	l1 mm	l2 mm	Locking thread
40/ER16		2�0 - 10	28	100	43	M16	40/ER32		2�0 - 20	50	100	53	M16
40/ER25		2�0 - 16	42	100	51	M16	—	—	—	—	—	—	—

240906 HAIMER, collet chuck HP, ZG130

BT/collet chuck	240906	d1 mm	d3 mm	l1 mm	l2 mm	Locking thread	BT/collet chuck	240906	d1 mm	d3 mm	l1 mm	l2 mm	Locking thread
50/ER16		2�0 - 10	28	130	43	M24	50/ER32		2�0 - 20	50	130	53	M24
50/ER25		2�0 - 16	42	130	51	M24	—	—	—	—	—	—	—

240908 HAIMER, collet chuck HP, overlong

BT/collet chuck	240908	d1 mm	d3 mm	l1 mm	l2 mm	Locking thread	BT/collet chuck	240908	d1 mm	d3 mm	l1 mm	l2 mm	Locking thread
40/ER16		2�0 - 10	28	160	43	M16	50/ER16		2�0 - 10	28	160	43	M24
40/ER25		2�0 - 16	42	160	51	M16	50/ER25		2�0 - 16	42	160	51	M24
40/ER32		2�0 - 20	50	160	53	M16	50/ER32		2�0 - 20	50	160	53	M24

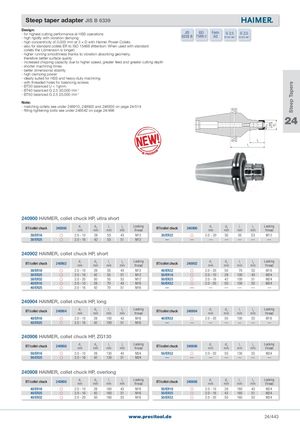

Общий каталог PRECITOOL - страница 448
