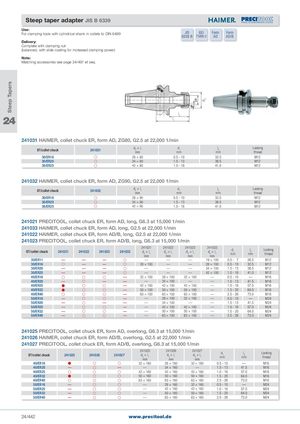

Steep Tapers d3 Steep taper adapter JIS B 6339 Use: For clamping tools with cylindrical shank in collets to DIN 6499 JIS ISO Form Form 6339 B 7388-2 AD AD/B Delivery: Complete with clamping nut (balanced, with slide coating for increased clamping power) Note: Matching accessories see page 24/497 et seq. l2 24 l1 241031 HAIMER, collet chuck ER, form AD, ZG80, G2.5 at 22,000 1/min BT/collet chuck 241031 d3 × l1mm d1 l2 Lockingmmmmthread 30/ER16  28 × 80 0.5 - 10 32.5 M12 30/ER20  34 × 80 1.5 - 13 38.5 M12 30/ER25  42 × 80 1.0 - 16 41.0 M12 241032 HAIMER, collet chuck ER, form AD, ZG90, G2.5 at 22,000 1/min BT/collet chuck 241032 d3 × l1mm d l Locking12mmmmthread 30/ER16  28 × 90 0.5 - 10 32.5 M12 30/ER20  34 × 90 1.5 - 13 38.5 M12 30/ER25  42 × 90 1.0 - 16 41.0 M12 241021 PRECITOOL, collet chuck ER, form AD, long, G6.3 at 15,000 1/min 241033 HAIMER, collet chuck ER, form AD, long, G2.5 at 22,000 1/min 241022 HAIMER, collet chuck ER, form AD/B, long, G2.5 at 22,000 1/min 241023 PRECITOOL, collet chuck ER, form AD/B, long, G6.3 at 15,000 1/min 241021 241022 241023 241033BT/collet chuck241021241022241023241033d3 × l1d3 × l1d3 × l1d3 × l1mmmmmmmmd1mml2Lockingmmthread 30/ER11 — — —  — — — 19 × 100 0.5 -   7 26.5 M12 30/ER16  — —  28 × 100 — — 28 × 100 0.5 - 10 32.5 M12 30/ER20 — — —  — — — 34 × 100 1.5 - 13 38.5 M12 30/ER25 — — —  — — — 42 × 100 1.0 - 16 41.0 M12 40/ER16    — 32 × 100 28 × 100 32 × 100 — 0.5 - 10 — M16 40/ER20 —  — — — 34 × 100 — — 1.5 - 13 41.5 M16 40/ER25    — 42 × 100 42 × 100 42 × 100 — 1.0 - 16 57.0 M16 40/ER32    — 50 × 100 50 × 100 50 × 100 — 1.5 - 20 64.0 M16 40/ER40    — 63 × 100 63 × 100 63 × 100 — 2.5 - 26 73.0 M16 50/ER16 —   — — 28 × 100 32 × 100 — 0.5 - 10 — M24 50/ER20 —  — — — 34 × 100 — — 1.5 - 13 41.5 M24 50/ER25 —   — — 42 × 100 42 × 100 — 1.0 - 16 57.0 M24 50/ER32 —   — — 50 × 100 50 × 100 — 1.5 - 20 64.0 M24 50/ER40 —   — — 63 × 100 63 × 100 — 2.5 - 26 73.0 M24 241025 PRECITOOL, collet chuck ER, form AD, overlong, G6.3 at 15,000 1/min 241026 HAIMER, collet chuck ER, form AD/B, overlong, G2.5 at 22,000 1/min 241027 PRECITOOL, collet chuck ER, form AD/B, overlong, G6.3 at 15,000 1/min 241025 241026 241027BT/collet chuck241025241026241027d3 × l1d3 × l1d3 × l1mmmmmmd1mml2Lockingmmthread 40/ER16    32 × 160 28 × 160 32 × 160 0.5 - 10 — M16 40/ER20 —  — — 34 × 160 — 1.5 - 13 41.5 M16 40/ER25    42 × 160 42 × 160 42 × 160 1.0 - 16 57.0 M16 40/ER32    50 × 160 50 × 160 50 × 160 1.5 - 20 64.0 M16 40/ER40    63 × 160 63 × 160 63 × 160 2.5 - 26 73.0 M16 50/ER16 —   — 28 × 160 32 × 160 0.5 - 10 — M24 50/ER25 —   — 42 × 160 42 × 160 1.0 - 16 57.0 M24 50/ER32 —   — 50 × 160 50 × 160 1.5 - 20 64.0 M24 50/ER40 —   — 63 × 160 63 × 160 2.5 - 26 73.0 M24 24/442 www.precitool.de
