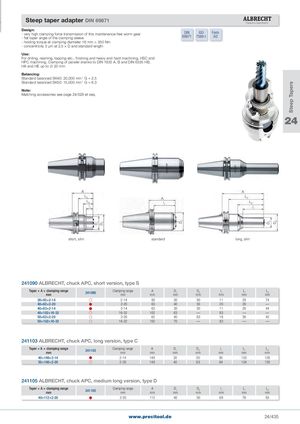

Общий каталог PRECITOOL - страница 440
Навигация
| - very high clamping force transmission of this maintenance-free worm gear | DIN | ISO | Form |
| - flat taper angle of the clamping sleeve | 69871 | 7388-1 | AD |
- holding torque at clamping diameter 16 mm > 350 Nm - concentricity 3 µm at 2.5 × D and standard length Use: For drilling, reaming, tapping etc., finishing and heavy and hard machining, HSC and
HPC machining. Clamping of parallel shanks to DIN 1835 A, B and DIN 6535 HB, HA and HE up to 20 mm
Balancing: Standard balanced SK40: 20,000 min-1 G = 2.5 Standard balanced SK50: 15,000 min-1 G = 6.3
Note: Matching accessories see page 24/529 et seq.
24
A A L L
| 3 | A | 3 | |
| L | l | L | |
| 2 | 2 | ||
| l | 1 | l |
1 1
short, slim standard long, slim
241090 ALBRECHT, chuck APC, short version, type S
| Taper × A × clamping range mm | 241090 | Clamping range mm | A mm | D1 mm | D2 mm | l1 mm | L² mm | L3 mm |
| 30×93×2-14 | | 2-14 | 93 | 30 | 50 | 11 | 29 | 74 |
| 40×63×2-20 | | 2-20 | 63 | 40 | 50 | 20 | 28 | — |
| 40×63×2-14 | | 2-14 | 63 | 30 | 50 | 11 | 29 | 44 |
| 40×102×16-32 | | 16-32 | 102 | 63 | — | 83 | — | — |
| 50×62×2-20 | | 2-20 | 62 | 40 | 63 | 18 | 38 | 43 |
| 50×102×16-32 | | 16-32 | 102 | 70 | — | 83 | — | — |
241103 ALBRECHT, chuck APC, long version, type C
| Taper × A × clamping range mm | 241103 | Clamping range mm | A mm | D1 mm | D2 mm | l1 mm | L² mm | L3 mm |
| 40×149×2-14 | | 2-14 | 149 | 30 | 50 | 85 | 103 | 129 |
| 50×148×2-20 | | 2-20 | 148 | 40 | 63 | 84 | 104 | 129 |
241105 ALBRECHT, chuck APC, medium long version, type D
| Taper × A × clamping range mm | 241105 | Clamping range mm | A mm | D1 mm | D2 mm l1 mm | L² mm L3 mm |
| 40×112×2-20 | | 2-20 | 112 | 40 | 50 69 | 78 93 |
