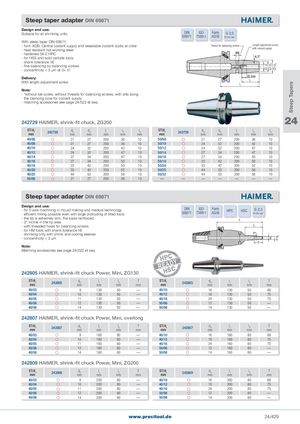

Suitable for all shrinking units	DIN	ISO	Form	G 2,5
	69871	7388-1	AD/B

25.000 min-1 With steep taper DIN 69871:

- form ADB: - heat resista - hardened 5 - for HSS an	Central coola nt hot-workin 4-2 HRC d solid carbid	nt supply and g steel e tools	resealabl	e coolant d	ucts at c	ollar			Thread for balanci	ng screws	Length with co	adjustment screw olant supply
- shank toler	ance h6											1 3 4
- fine-balanci	ng by balanci	ng screws										d d d
- concentricit	y < 3 µm at 3	×										Ø Ø Ø
Delivery: With length a	djustment scr	ew								l1	l2
Note: - without se the clampin - matching a 242729 H	t screw, witho g bore for co ccessories se AIMER, s	ut threads fo olant supply e page 24/5 hrink-fit c	r balancin 22 et seq. huck, Z	g screws, G200	with slits a	long
ST/d1	242729	d3	d4	l1	l2	l3	ST/d1	242729 d3	d4	l1	l2	l3
mm		mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm
40/06		21	27	200	36	10	50/08	 21	27	200	36	10
40/08		21	27	200	36	10	50/10	 24	32	200	42	10
40/10		24	32	200	42	10	50/12	 24	32	200	47	10
40/12		24	32	200	47	10	50/14	 27	34	200	47	10
40/14		27	34	200	47	10	50/16	 27	34	200	50	10
40/16		27	34	200	50	10	50/18	 33	42	200	50	10
40/18		33	42	200	50	10	50/20	 33	42	200	52	10
40/20		33	42	200	52	10	50/25	 44	53	200	58	10
40/25		44	53	200	58	10	50/32	 44	53	200	58	10
50/06		21	27	200	36	10	—	— —	—	—	—	—

24 Steep taper adapter DIN 69871

Design and use:

- for 5-axis machining in mould making and medical technology	DIN	ISO	Form
- efficient milling possible even with large protruding of tilted tools	69871	7388-1	AD/B

- the tip is extremely slim, the basis reinforced - 3° incline in the tip area - with threaded holes for balancing screws - for HM tools with shank tolerance h6

- shrinking only with shrink and cooling sleeves - concentricity < 3 µm

Note: Matching accessories see page 24/522 et seq.

HPC

HSC

G 2,5 25.000 min-1

242805 HAIMER, shrink-fit chuck Power, Mini, ZG130

ST/d1 mm	242805	d3 mm	l1 mm	l2 mm	T mm	ST/d1 mm	242805	d3 mm	l1 mm	l2 mm	T mm
40/03		9	130	50	—	40/10		16	130	50	68
40/04		10	130	50	—	40/12		18	130	50	75
40/05		11	130	50	—	40/16		24	130	50	75
40/06		12	130	50	—	50/06		12	130	50	—
40/08		14	130	50	—	50/08		14	130	50	—

242807 HAIMER, shrink-fit chuck Power, Mini, overlong

ST/d1 mm	242807	d3 mm	l1 mm	l2 mm	T mm	ST/d1 mm	242807	d3 mm	l1 mm	l2 mm	T mm
40/03		9	160	80	—	40/10		16	160	80	68
40/04		10	160	80	—	40/12		18	160	80	75
40/05		11	160	80	—	40/16		24	160	80	75
40/06		12	160	80	—	50/06		12	160	80	—
40/08		14	160	80	—	50/08		14	160	80	—

242809 HAIMER, shrink-fit chuck Power, Mini, ZG200

ST/d1 mm	242809	d3 mm	l1 mm	l2 mm	T mm	ST/d1 mm	242809	d3 mm	l1 mm	l2 mm	T mm
40/03		9	200	80	—	40/10		16	200	80	68
40/04		10	200	80	—	40/12		18	200	80	75
40/05		11	200	80	—	40/16		24	200	80	75
40/06		12	200	80	—	50/06		12	200	80	—
40/08		14	200	80	—	50/08		14	200	80	—
