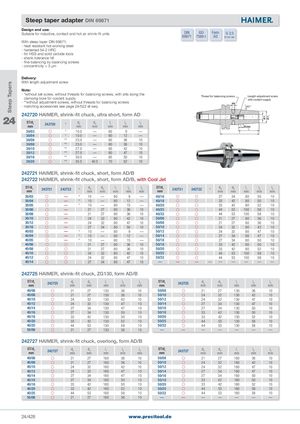

Suitable for inductive, contact and hot air shrink-fit units With steep taper DIN 69871: - heat resistant hot-working steel - hardened 54-2 HRC - for HSS and solid carbide tools - shank tolerance h6 - fine-balancing by balancing screws - concentricity < 3 µm

Delivery: With length adjustment screw

Note: - *without set screw, without threads for balancing screws, with slits along the

DIN	ISO	Form	G 2,5
69871	7388-1	AD

25.000 min-1

amping without atching 2720	, bore for cool adjustment s accessories HAIMER,	ant sup crews, see pa shrin	ply without th ge 24/522 k-fit ch	reads for et seq. uck, ult	, balancing ra shor	screws t, form	AD	d1 d3 d4 Thread for balancing screws Length adjustment screw with coolant supply
ST/d1 mm	242720		d3 mm	d4 mm	l1 mm	l2 mm	l3 mm	l l3
30/03			10�0	—	60	9	—	l1 2
30/04			10�0	—	60	12	—
30/06			23�0	—	60	36	10
30/08			23�0	—	60	36	10
30/10			27�0	—	60	42	10
30/12			27�0	—	60	47	10
30/16			30�0	—	65	50	10
30/20			35�5	40�5	70	52	10

242721 HAIMER, shrink-fit chuck, short, form AD/B

242722 HAIMER, shrink-fit chuck, short, form AD/B, with Cool Jet

ST/d1 mm	242721	242722	d3 mm	d4 mm	l1 mm	l2 mm	l3 mm	ST/d1 mm	242721	242722	d3 mm	d4 mm	l1 mm	l2 mm	l3 mm
30/03		—	10	—	80	9	—	40/16			27	34	80	50	10
30/04		—	10	—	80	12	—	40/18			33	42	80	50	10
30/05		—	10	—	80	15	—	40/20			33	42	80	52	10
30/06		—	21	27	80	36	10	40/25			44	53	100	58	10
30/08		—	21	27	80	36	10	40/32			44	53	100	58	10
30/10		—	24	32	80	42	10	50/06			21	27	80	36	10
30/12		—	24	32	80	47	10	50/08			21	27	80	36	10
30/16		—	27	34	80	50	10	50/10			24	32	80	42	10
40/03		—	10	—	80	9	—	50/12			24	32	80	47	10
40/04		—	10	—	80	12	—	50/14			27	34	80	47	10
40/05		—	10	—	80	15	—	50/16			27	34	80	50	10
40/06			21	27	80	36	10	50/18			33	42	80	50	10
40/08			21	27	80	36	10	50/20			33	42	80	52	10
40/10			24	32	80	42	10	50/25			44	53	100	58	10
40/12			24	32	80	47	10	50/32			44	53	100	58	10
40/14			27	34	80	47	10	—	—	—	— —	—	—	—	—

242725 HAIMER, shrink-fit chuck, ZG130, form AD/B

ST/d1 mm	242725	d3 mm	d4 mm	l1 mm	l2 mm	l3 mm
40/06		21	27	130	36	10
40/08		21	27	130	36	10
40/10		24	32	130	42	10
40/12		24	32	130	47	10
40/14		27	34	130	47	10
40/16		27	34	130	50	10
40/18		33	42	130	50	10
40/20		33	42	130	52	10
40/25		44	53	130	58	10
50/06		21	27	130	36	10

ST/d1 mm	242725	d3 mm	d4 mm	l1 mm	l2 mm	l3 mm
50/08		21	27	130	36	10
50/10		24	32	130	42	10
50/12		24	32	130	47	10
50/14		27	34	130	47	10
50/16		27	34	130	50	10
50/18		33	42	130	50	10
50/20		33	42	130	52	10
50/25		44	53	130	58	10
50/32 —	 —	44 —	53 —	130 —	58 —	10 —

242727 HAIMER, shrink-fit chuck, overlong, form AD/B

ST/d1 mm	242727	d3 mm	d4 mm	l1 mm	l2 mm	l3 mm
40/06		21	27	160	36	10
40/08		21	27	160	36	10
40/10		24	32	160	42	10
40/12		24	32	160	47	10
40/14		27	34	160	47	10
40/16		27	34	160	50	10
40/18		33	42	160	50	10
40/20		33	42	160	52	10
40/25		44	53	160	58	10
50/06		21	27	160	36	10

ST/d1 mm	242727	d3 mm	d4 mm	l1 mm	l2 mm	l3 mm
50/08		21	27	160	36	10
50/10		24	32	160	42	10
50/12		24	32	160	47	10
50/14		27	34	160	47	10
50/16		27	34	160	50	10
50/18		33	42	160	50	10
50/20		33	42	160	52	10
50/25		44	53	160	58	10
50/32 —	 —	44 —	53 —	160 —	58 —	10 —
