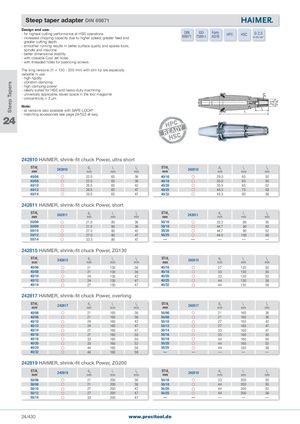

Общий каталог PRECITOOL

- for highest cutting performance at HSS operations	DIN	ISO	Form	HPC	HSC	G 2,5
- increased chipping capacity due to higher speed, greater feed and	69871	7388-1	AD/B

25.000 min-1 greater cutting depth - smoother running results in better surface quality and spares tools, spindle and machine

- better dimensional stability - with closable Cool Jet holes - with threaded holes for balancing screws The long versions (l1 = 130 - 200 mm) with slim tip are especially versatile in use - high rigidity - vibration-damping - high clamping power - ideally suited for HSS and heavy-duty machining - universally applicable, saves space in the tool magazine - concentricity < 3 µm

Note: - all versions also available with SAFE-LOCK® 24 - matching accessories see page 24/522 et seq.

242810 HAIMER, shrink-fit chuck Power, ultra short

ST/d1 mm	242810	d3 mm	l1 mm	l2 mm	ST/d1 mm	242810	d3 mm	l1 mm	l2 mm
40/06		22�0	65	36	40/16		29�5	65	50
40/08		22�0	65	36	40/18		35�5	65	50
40/10		26�5	65	42	40/20		35�5	65	52
40/12		26�5	65	47	40/25		45�5	75	58
40/14		29�5	65	47	40/32		45�5	80	58

242811 HAIMER, shrink-fit chuck Power, short

ST/d1 mm	242811	d3 mm	l1 mm	l2 mm	ST/d1 mm	242811	d3 mm	l1 mm	l2 mm
50/06		21�0	80	36	50/16		33�3	80	50
50/08		21�0	80	36	50/18		44�7	80	50
50/10		27�0	80	42	50/20		44�7	80	52
50/12		27�0	80	47	50/25		44�0	100	58
50/14		33�3	80	47	—	—	—	—	—

242815 HAIMER, shrink-fit chuck Power, ZG130

ST/d1 mm	242815	d3 mm	l1 mm	l2 mm	ST/d1 mm	242815	d3 mm	l1 mm	l2 mm
40/06		21	130	36	40/16		27	130	50
40/08		21	130	36	40/18		33	130	50
40/10		24	130	42	40/20		33	130	52
40/12		24	130	47	40/25		44	130	58
40/14		27	130	47	40/32		44	130	58

242817 HAIMER, shrink-fit chuck Power, overlong

ST/d1 mm	242817	d3 mm	l1 mm	l2 mm	ST/d1 mm	242817	d3 mm	l1 mm	l2 mm
40/06		21	160	36	50/06		21	160	36
40/08		21	160	36	50/08		21	160	36
40/10		24	160	42	50/10		27	160	42
40/12		24	160	47	50/12		27	160	47
40/14		27	160	47	50/14		33	160	47
40/16		27	160	50	50/16		33	160	50
40/18		33	160	50	50/18		44	160	50
40/20		33	160	52	50/20		44	160	52
40/25		44	160	58	50/25		44	160	58
40/32		44	160	58	—	—	—	—	—

242819 HAIMER, shrink-fit chuck Power, ZG200

ST/d1 mm	242819	d3 mm	l1 mm	l2 mm	ST/d1 mm	242819	d3 mm	l1 mm	l2 mm
50/06		21	200	36	50/16		33	200	50
50/08		21	200	36	50/18		44	200	50
50/10		27	200	42	50/20		44	200	52
50/12		27	200	47	50/25		44	200	58
50/14		33	200	47	—	—	—	—	—
