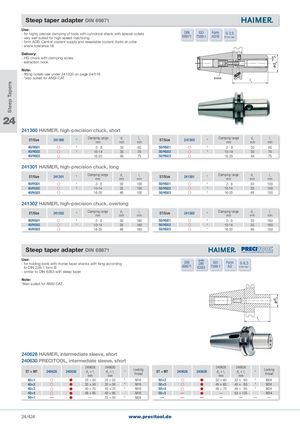

Общий каталог PRECITOOL - страница 429

Steep Tapers d3d3 Steep taper adapter DIN 69871 Use: - for highly precise clamping of tools with cylindrical shank with special collets DIN ISO Form G 2,5 - very well suited for high-speed machining 69871 7388-1 AD/B 25.000 min-1 - form ADB: Central coolant supply and resealable coolant ducts at collar - shank tolerance h6 Delivery: - HG chuck with clamping screw - extraction hook Note: - fitting collets see under 241320 on page 24/518 - *also suited for ANSI-CAT l1 24 241300 HAIMER, high-precision chuck, short ST/Size 241300 * Clamping rangemm d1mm l1mm ST/Size 241300 * Clamping rangemm d1mm l1mm 40/HG01  * 2- 8 30 65 50/HG01  * 2- 8 30 65 40/HG02  * 10-14 35 70 50/HG02  * 10-14 35 70 40/HG03  16-20 48 75 50/HG03  16-20 48 75 241301 HAIMER, high-precision chuck, long ST/Size 241301 * Clamping rangemm d1mm l1mm ST/Size 241301 * Clamping rangemm d1mm l1mm 40/HG01  *  2- 8 30 100 50/HG01  *  2- 8 30 100 40/HG02  * 10-14 35 100 50/HG02  * 10-14 35 100 40/HG03  16-20 48 100 50/HG03  * 16-20 48 100 241302 HAIMER, high-precision chuck, overlong ST/Size 241302 * Clamping rangemm d 1mm l 1mm ST/Size 241302 * Clamping rangemm d 1mm l 1mm 40/HG01  * 2- 8 30 160 50/HG01  * 2- 8 30 160 40/HG02  * 10-14 35 160 50/HG02  * 10-14 35 160 40/HG03  16-20 48 160 50/HG03  * 16-20 48 160 Steep taper adapter DIN 69871 Use:- for holding tools with morse taper shanks with tang according DIN similarDIN ISO Form G 6,3 to DIN 228-1 form B 69871 6383 7388-1 AD 8.000 min-1 - similar to DIN 6383 with steep taper Note: *Also suited for ANSI-CAT l1 240628 HAIMER, intermediate sleeve, short 240630 PRECITOOL, intermediate sleeve, short 240628 240630 240628 240630 ST × MT 240628 240630 d3 × l1mm d3 × l1mm * Lockingthread ST × MT 240628 240630 d3 × l1mm d3 × l1mm * Lockingthread 40×1   25 × 50 25 × 50 * M16 50×2   32 × 60 32 ×   60 * M24 40×2   32 × 50 32 × 50 * M16 50×3   40 × 65 40 ×   65 * M24 40×3   40 × 70 40 × 70 * M16 50×4   48 × 70 48 ×   95 * M24 40×4   48 × 95 48 × 95 M16 50×5 —  — 63 × 120 M24 50×1 —  — 25 × 50 * M24 — — — — — — — 24/424 www.precitool.de
