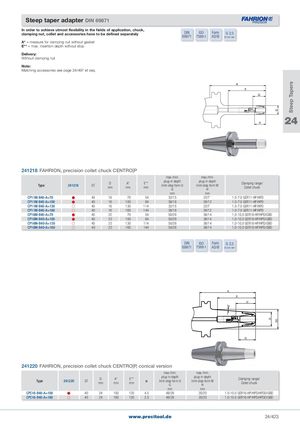

Общий каталог PRECITOOL - страница 428
Навигация
| In order to achieve utmost flexibility in the fields of application, chuck, | ||||
| clamping nut, collet and accessories have to be defined separately | DIN 69871 | ISO 7388-1 | Form AD/B | G 2,5 25.000 min-1 |
A* = measure for clamping nut without gasket E** = max. insertion depth without stop
Delivery: Without clamping nut
Note: Matching accessories see page 24/497 et seq.
24
241218 FAHRION, precision collet chuck CENTRO|P
| Type | 241218 | ST | D mm | A mm | E mm | max�/min� plug-in depth limit-stop form U G mm | max�/min� plug-in depth limit-stop form W H mm | Clamping range/ Collet chuck |
| CP11M-B40-A=70 | | 40 | 16 | 70 | 54 | 32/15 | 22/7 | 1�0-7�0 GER11-HP/HPD |
| CP11M-B40-A=100 | | 40 | 16 | 100 | 84 | 36/18 | 26/12 | 1�0-7�0 GER11-HP/HPD |
| CP11M-B40-A=130 | | 40 | 16 | 130 | 114 | 32/15 | 22/7 | 1�0-7�0 GER11-HP/HPD |
| CP11M-B40-A=160 | | 40 | 16 | 160 | 144 | 36/18 | 26/12 | 1�0-7�0 GER11-HP/HPD |
| CP16M-B40-A=70 | | 40 | 22 | 70 | 54 | 50/28 | 36/14 | 1,0-10,0 GER16-HP/HPD/GBD |
| CP16M-B40-A=100 | | 40 | 22 | 100 | 84 | 50/28 | 36/14 | 1,0-10,0 GER16-HP/HPD/GBD |
| CP16M-B40-A=130 | | 40 | 22 | 130 | 114 | 50/28 | 36/14 | 1,0-10,0 GER16-HP/HPD/GBD |
| CP16M-B40-A=160 | | 40 | 22 | 160 | 144 | 50/28 | 36/14 | 1,0-10,0 GER16-HP/HPD/GBD |
| DIN 69871 | ISO 7388-1 Form AD/B | G 2,5 25.000 min-1 |
| 1220 FAHRION, | precisio | n coll | et chuc | k CEN | TRO | P, | conica | l version | D D2 H A G E a | |
| Type | 241220 | ST | D mm | A mm | E mm | α | max�/min� plug-in depth limit-stop form U G | max�/min� plug-in depth limit-stop form W H | Clamping range/ Collet chuck | |
| mm | mm | |||||||||
| CPC16-B40-A=100 | | 40 | 24 | 100 | 120 | 4�5 | 48/28 | 35/20 | 1�0-10�0 GER16-HP/HPD/HPDD/GBD | |
| CPC16-B40-A=160 | | 40 | 24 | 160 | 120 | 2�5 | 48/28 | 35/20 | 1�0-10�0 GER16-HP/HPD/HPDD/GBD |
