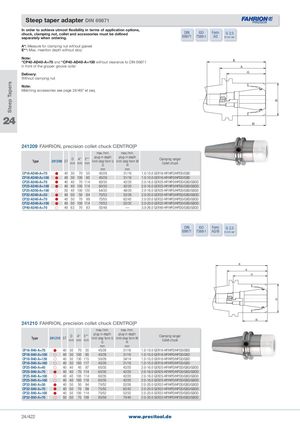

In order to achieve utmost flexibility in terms of application options,
| chuck, clamping nut, collet and accessories must be defined | DIN | ISO | Form | G 2,5 |
| separately when ordering. | 69871 | 7388-1 | AD |
25.000 min-1 A*: Measure for clamping nut without gasket E**: Max. insertion depth without stop Note:
*CP40-AD40-A=70 and *CP40-AD40-A=100 without clearance to DIN 69871 E in front of the gripper groove collar
Delivery: Without clamping nut
Note: Matching accessories see page 24/497 et seq.
24
A G
H
241209 FAHRION, precision collet chuck CENTRO|P
| Type | 241209 | ST | D mm | A mm | E mm | max�/min� plug-in depth limit-stop form U G mm | max�/min� plug-in depth limit-stop form W H mm | Clamping range/ Collet chuck |
| CP16-AD40-A=70 | | 40 | 30 | 70 | 55 | 45/28 | 31/16 | 1�0-10�0 GER16-HP/HPD/HPDD/GBD |
| CP16-AD40-A=100 | | 40 | 30 | 100 | 85 | 45/28 | 31/16 | 1�0-10�0 GER16-HP/HPD/HPDD/GBD |
| CP25-AD40-A=70 | | 40 | 40 | 70 | 114 | 60/35 | 42/20 | 2�0-16�0 GER25-HP/HPD/HPDD/GBD/GBDD |
| CP25-AD40-A=100 | | 40 | 40 | 100 | 114 | 60/35 | 42/20 | 2�0-16�0 GER25-HP/HPD/HPDD/GBD/GBDD |
| CP25-AD50-A=100 | | 50 | 40 | 100 | 120 | 64/35 | 48/20 | 2�0-16�0 GER25-HP/HPD/HPDD/GBD/GBDD |
| CP32-AD40-A=50 | | 40 | 50 | 50 | 84 | 70/52 | 52/26 | 2�0-20�0 GER32-HP/HPD/HPDD/GBD/GBDD |
| CP32-AD40-A=70 | | 40 | 50 | 70 | 99 | 75/55 | 62/42 | 2�0-20�0 GER32-HP/HPD/HPDD/GBD/GBDD |
| CP32-AD40-A=100 | | 40 | 50 | 100 | 114 | 70/52 | 52/32 | 2�0-20�0 GER32-HP/HPD/HPDD/GBD/GBDD |
| CP40-AD40-A=70 | | 40 | 63 | 70 | 83 | 55/48 | — | 3�0-26�0 GER40-HP/HPD/HPDD/GBD/GBDD |
| DIN | ISO | Form | G 2,5 |
| 69871 | 7388-1 | AD/B |
25.000 min-1
E A G
H
241210 FAHRION, precision collet chuck CENTRO|P
| Type | 241210 | ST | D mm | A mm | E mm | max�/min� plug-in depth limit-stop form U G mm | max�/min� plug-in depth limit-stop form W H mm | Clamping range/ Collet chuck |
| CP16-B40-A=70 | | 40 | 30 | 70 | 55 | 45/28 | 31/16 | 1�0-10�0 GER16-HP/HPD/HPDD/GBD |
| CP16-B40-A=100 | | 40 | 30 | 100 | 85 | 45/28 | 31/16 | 1�0-10�0 GER16-HP/HPD/HPDD/GBD |
| CP16-B40-A=130 | | 40 | 30 | 130 | 115 | 50/28 | 34/14 | 1�0-10�0 GER16-HP/HPD/HPDD/GBD |
| CP16-B40-A=160 | | 40 | 30 | 160 | 117 | 45/28 | 31/16 | 1�0-10�0 GER16-HP/HPD/HPDD/GBD |
| CP25-B40-A=45 | | 40 | 40 | 45 | 87 | 60/35 | 42/20 | 2�0-16�0 GER25-HP/HPD/HPDD/GBD/GBDD |
| CP25-B40-A=70 | | 40 | 40 | 70 | 114 | 60/35 | 42/20 | 2�0-16�0 GER25-HP/HPD/HPDD/GBD/GBDD |
| CP25-B40-A=100 | | 40 | 40 | 100 | 114 | 60/35 | 42/20 | 2�0-16�0 GER25-HP/HPD/HPDD/GBD/GBDD |
| CP25-B40-A=160 | | 40 | 40 | 160 | 118 | 60/35 | 42/20 | 2�0-16�0 GER25-HP/HPD/HPDD/GBD/GBDD |
| CP32-B40-A=50 | | 40 | 50 | 50 | 84 | 70/52 | 52/26 | 2�0-20�0 GER32-HP/HPD/HPDD/GBD/GBDD |
| CP32-B40-A=70 | | 40 | 50 | 70 | 99 | 75/55 | 62/42 | 2�0-20�0 GER32-HP/HPD/HPDD/GBD/GBDD |
| CP32-B40-A=100 | | 40 | 50 | 100 | 114 | 70/52 | 52/32 | 2�0-20�0 GER32-HP/HPD/HPDD/GBD/GBDD |
| CP32-B50-A=70 | | 50 | 50 | 70 | 109 | 85/59 | 70/40 | 2�0-20�0 GER32-HP/HPD/HPDD/GBD/GBDD |
