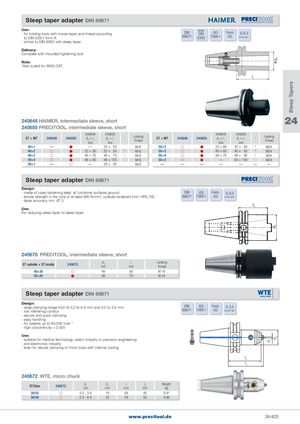

Use: similar
| - for holding tools with morse taper and thread according | DIN | DIN |
| to DIN 228/1 form A | 69871 | 6383 |
- similar to DIN 6383 with steep taper Delivery: Complete with mounted tightening bolt. Note:
*Also suited for ANSI-CAT.
ISO 7388-1
Form AD
G 6,3 8.000 min-1
l 1
24
240648 HAIMER, intermediate sleeve, short
240650 PRECITOOL, intermediate sleeve, short
| ST × MT | 240648 | 240650 | 240648 d3× l1 mm | 240650 d3× l1 mm | Locking thread | ST × MT | 240648 | 240650 | 240648 d3× l1 mm | 240650 d3× l1 mm | Locking thread | |
| 40×1 | — | | — | 25 × 50 | M16 | 50×2 | | | 32 × 60 | 32 × 60 | M24 | |
| 40×2 | | | 32 × 50 | 32 × 50 | M16 | 50×3 | | | 40 × 65 | 40 × 65 | M24 | |
| 40×3 | | | 40 × 70 | 40 × 75 | M16 | 50×4 | | | 48 × 70 | 48 × 80 | M24 | |
| 40×4 | | | 48 × 95 | 48 × 105 | M16 | 50×5 | — | | — | 63 × 100 | M24 | |
| 50×1 | — | | — | 25 × 45 | M24 | — | — | — | — | — | — | — |
Steep taper adapter DIN 69871
Design:
| - made of case-hardening steel, all functional surfaces ground | DIN | ISO | Form | G 6,3 |
| - tensile strength in the core of at least 800 N/mm², outside hardened (min. HRC 56) | 69871 | 7388-1 | AD |
8.000 min-1 - taper accuracy min. AT 3 Use: For reducing steep taper to steep taper.
240670 PRECITOOL, intermediate sleeve, short
| ST outside × ST inside | 240670 | d3 mm | l1 mm | Locking thread |
| 40×30 | | 49 | 60 | M 16 |
| 50×40 | | 68 | 70 | M 24 |
Steep taper adapter DIN 69871
Design: - large clamping range from Ø 0.2 to 6.4 mm and 0.2 to 3.4 mm - low interfering contour - secure and quick clamping - easy handling - for speeds up to 60,000 max.-1 - high concentricity < 0.005
Use: - suitable for medical technology, watch industry or precision engineering and electronics industry - even for secure clamping of micro tools with internal cooling
240672 WTE, micro chuck
DIN ISO 69871 7388-1
Form AD
G 2,5 25.000 min-1
l
2
l
1
| ST/Size | 240672 | d1 mm | d3 mm | l1 mm | l2 mm | Weight kg |
| 30/03 | | 0�2 - 3�4 | 19 | 48 | 45 | 0�41 |
| 30/06 | | 0�2 - 6�4 | 25 | 59 | 55 | 0�80 |
