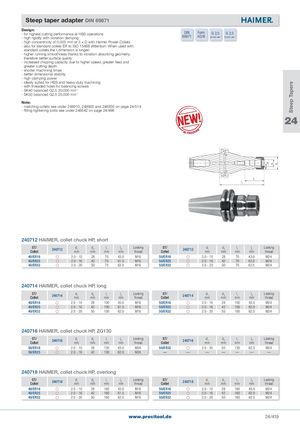

Общий каталог PRECITOOL

- for highest cutting performance at HSS operations	DIN	Form	G 2,5	G 2,5
- high rigidity with vibration damping	69871	AD/B

25.000 min-1 30.000 min-1 - high concentricity of 0.003 mm at 3 × D with Haimer Power Collets - also for standard collets ER to ISO 15488 (Attention: When used with standard collets the I dimension is longer)

- higher running smoothness thanks to vibration absorbing geometry, 1 therefore better surface quality - increased chipping capacity due to higher speed, greater feed and greater cutting depth - shorter machining times - better dimensional stability - high clamping power - ideally suited for HSS and heavy-duty machining - with threaded holes for balancing screws - SK40 balanced G2.5 30,000 min-1 - SK50 balanced G2.5 25,000 min-1

Note: - matching collets see under 248910, 248920 and 248930 on page 24/514 - fitting tightening bolts see under 246542 on page 24/498

24

l 1

l 2

240712 HAIMER, collet chuck HP, short

ST/ Collet	240712	d1 mm	d3 mm	l1 mm	l2 mm	Locking thread	ST/ Collet	240712	d1 mm	d3 mm	l1 mm	l2 mm	Locking thread
40/ER16		2�0 - 10	28	70	43�0	M16	50/ER16		2�0 - 10	28	70	43�0	M24
40/ER25		2�0 - 16	42	70	61�5	M16	50/ER25		2�0 - 16	42	70	62�0	M24
40/ER32		2�0 - 20	50	70	62�0	M16	50/ER32		2�0 - 20	50	70	62�5	M24

240714 HAIMER, collet chuck HP, long

ST/ Collet	240714	d1 mm	d3 mm	l1 mm	l2 mm	Locking thread	ST/ Collet	240714	d1 mm	d3 mm	l1 mm	l2 mm	Locking thread
40/ER16		2�0 - 10	28	100	43�0	M16	50/ER16		2�0 - 10	28	100	43�0	M24
40/ER25		2�0 - 16	42	100	61�5	M16	50/ER25		2�0 - 16	42	100	62�0	M24
40/ER32		2�0 - 20	50	100	62�0	M16	50/ER32		2�0 - 20	50	100	62�5	M24

240716 HAIMER, collet chuck HP, ZG130

ST/ Collet	240716	d1 mm	d3 mm	l1 mm	l2 mm	Locking thread	ST/ Collet	240716	d1 mm	d3 mm	l1 mm	l2 mm	Locking thread
50/ER16		2�0 - 10	28	130	43�0	M24	50/ER32		2�0 - 20	50	130	62�5	M24
50/ER25		2�0 - 16	42	130	62�0	M24	—	—	—	—	—	—	—

240718 HAIMER, collet chuck HP, overlong

ST/ Collet	240718	d1 mm	d3 mm	l1 mm	l2 mm	Locking thread	ST/ Collet	240718	d1 mm	d3 mm	l1 mm	l2 mm	Locking thread
40/ER16		2�0 - 10	28	160	43�0	M16	50/ER16		2�0 - 10	28	160	43�0	M24
40/ER25		2�0 - 16	42	160	61�5	M16	50/ER25		2�0 - 16	42	160	62�0	M24
40/ER32		2�0 - 20	50	160	62�0	M16	50/ER32		2�0 - 20	50	160	62�5	M24
