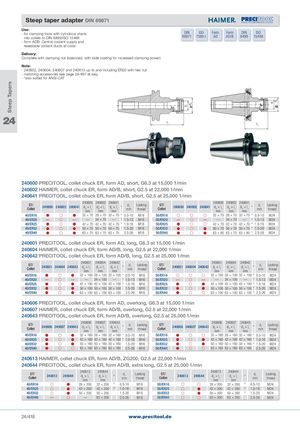

| - for clamping tools with cylindrical shank | DIN | ISO | Form | Form | DIN | ISO |
| into collets to DIN 6499/ISO 15488 | 69871 | 7388-1 | AD | AD/B | 6499 | 15488 |
- form ADB: Central coolant supply and resealable coolant ducts at collar Delivery: Complete with clamping nut (balanced, with slide coating for increased clamping power)
Note: - 240602, 240604, 240607 and 240613 up to and including ER20 with hex nut - matching accessories see page 24/497 et seq. - *also suited for ANSI-CAT
24
l 1 l 1
240600 PRECITOOL, collet chuck ER, form AD, short, G6.3 at 15,000 1/min
240602 HAIMER, collet chuck ER, form AD/B, short, G2.5 at 22,000 1/min
240641 PRECITOOL, collet chuck ER, form AD/B, short, G2.5 at 25,000 1/min
| ST/ Collet | 240600 | 240602 | 240641 | 240600 d3× l1 mm | 240602 d3× l1 mm | 240641 d3× l1 mm | d1 mm | Locking thread | ST/ Collet | 240600 | 240602 | 240641 | 240600 d3× l1 mm | 240602 d3× l1 mm | 240641 d3× l1 mm | d1 mm | Locking thread |
| 40/ER16 | | | | 32 × 70 | 28 × 70 | 32 × 70 | 0�5-10 | M16 | 50/ER16 | | | | 32 × 70 | 28 × 70 | 32 × 70 | 0�5-10 | M24 |
| 40/ER20 | — | | — | — | 34 × 70 | — | 1�5-13 | M16 | 50/ER20 | — | | — | — | 34 × 70 | — | 1�5-13 | M24 |
| 40/ER25 | | | | 42 × 70 | 42 × 70 | 42 × 70 | 1�0-16 | M16 | 50/ER25 | | | | 42 × 70 | 42 × 70 | 42 × 70 | 1�0-16 | M24 |
| 40/ER32 | | | | 50 × 70 | 50 × 70 | 50 × 70 | 1�5-20 | M16 | 50/ER32 | | | | 50 × 70 | 50 × 70 | 50 × 70 | 1�5-20 | M24 |
| 40/ER40 | | | | 63 × 70 | 63 × 70 | 63 × 70 | 2�5-26 | M16 | 50/ER40 | | | | 63 × 80 | 63 × 70 | 63 × 80 | 2�5-26 | M24 |
240601 PRECITOOL, collet chuck ER, form AD, long, G6.3 at 15,000 1/min
240604 HAIMER, collet chuck ER, form AD/B, long, G2.5 at 22,000 1/min
240642 PRECITOOL, collet chuck ER, form AD/B, long, G2.5 at 25,000 1/min
| ST/ Collet | 240601 | 240604 | 240642 | 240601 d3× l1 mm | 240604 d3× l1 mm | 240642 d3× l1 mm | d1 mm | Locking thread | ST/ Collet | 240601 | 240604 | 240642 | 240601 d3× l1 mm | 240604 d3× l1 mm | 240642 d3× l1 mm | d1 mm | Locking thread |
| 40/ER16 | | | | 32 × 100 | 28 × 100 | 32 × 100 | 0�5-10 | M16 | 50/ER16 | | | | 32 × 100 | 28 × 100 | 32 × 100 | 0�5-10 | M24 |
| 40/ER20 | — | | — | — | 34 × 100 | — | 1�5-13 | M16 | 50/ER20 | — | | — | — | 34 × 100 | — | 1�5-13 | M24 |
| 40/ER25 | | | | 42 × 100 | 42 × 100 | 42 × 100 | 1�0-16 | M16 | 50/ER25 | | | | 42 × 100 | 42 × 100 | 42 × 100 | 1�0-16 | M24 |
| 40/ER32 | | | | 50 × 100 | 50 × 100 | 50 × 100 | 1�5-20 | M16 | 50/ER32 | | | | 50 × 100 | 50 × 100 | 50 × 100 | 1�5-20 | M24 |
| 40/ER40 | | | | 63 × 100 | 63 × 100 | 63 × 100 | 2�5-26 | M16 | 50/ER40 | | | | 63 × 100 | 63 × 100 | 63 × 100 | 2�5-26 | M24 |
240606 PRECITOOL, collet chuck ER, form AD, overlong, G6.3 at 15,000 1/min
240607 HAIMER, collet chuck ER, form AD/B, overlong, G2.5 at 22,000 1/min
240643 PRECITOOL, collet chuck ER, form AD/B, overlong, G2.5 at 25,000 1/min
| ST/ Collet | 240606 | 240607 | 240643 | 240606 d3× l1 mm | 240607 d3× l1 mm | 240643 d3× l1 mm | d1 mm | Locking thread | ST/ Collet | 240606 | 240607 | 240643 | 240606 d3× l1 mm | 240607 d3× l1 mm | 240643 d3× l1 mm | d1 mm | Locking thread |
| 40/ER16 | | | | 32 × 160 | 28 × 160 | 32 × 160 | 0�5-10 | M16 | 50/ER16 | | | | 32 × 160 | 28 × 160 | 32 × 160 | 0�5-10 | M24 |
| 40/ER25 | | | | 42 × 160 | 42 × 160 | 42 × 160 | 1�0-16 | M16 | 50/ER25 | | | | 42 × 160 | 42 × 160 | 42 × 160 | 1�0-16 | M24 |
| 40/ER32 | | | | 50 × 160 | 50 × 160 | 50 × 160 | 1�5-20 | M16 | 50/ER32 | | | | 50 × 160 | 50 × 160 | 50 × 160 | 1�5-20 | M24 |
| 40/ER40 | | | | 63 × 160 | 63 × 160 | 63 × 160 | 2�5-26 | M16 | 50/ER40 | | | | 63 × 160 | 63 × 160 | 63 × 160 | 2�5-26 | M24 |
240613 HAIMER, collet chuck ER, form AD/B, ZG200, G2.5 at 22,000 1/min
240644 PRECITOOL, collet chuck ER, form AD/B, extra long, G2.5 at 25,000 1/min
| ST/ Collet | 240613 | 240644 | 240613 d3× l1 mm | 240644 d3× l1 mm | | d1 mm | Locking thread | ST/ Collet | 240613 | 240644 | 240613 d3× l1 mm | 240644 d3× l1 mm | d1 mm | Locking thread |
| 40/ER16 | | | 28 × 200 | 32 × 200 | | 0�5-10 | M16 | 50/ER16 | | | 28 × 200 | 32 × 200 | 0�5-10 | M24 |
| 40/ER25 | | | 42 × 200 | 42 × 200 | | 1�0-16 | M16 | 50/ER25 | | | 42 × 200 | 42 × 200 | 1�0-16 | M24 |
| 40/ER32 | | | 50 × 200 | 50 × 200 | | 1�5-20 | M16 | 50/ER32 | | | 50 × 200 | 50 × 200 | 1�5-20 | M24 |
| 40/ER40 | — | | — | 63 × 200 | | 2�5-26 | M16 | 50/ER40 | | | 63 × 200 | 63 × 200 | 2�5-26 | M24 |
