Общий каталог PRECITOOL

- for highest cutting performance at HSS operations	DIN	ISO	Form	HPC	HSC	G 2,5
- high rigidity with vibration damping	69871	7388-1	AD/B

25.000 min-1 - universally applicable also with standard collets - high concentricity of 0.003 mm at 3 × D with Haimer Power Collets - also for standard collets ER to ISO 15488 (Attention: When used with

standard collets the I dimension is longer) - higher running smoothness thanks to vibration absorbing geometry, 1 therefore better surface quality - increased chipping capacity due to higher speed, greater feed and greater cutting depth - shorter machining times - better dimensional stability - high clamping power - ideally suited for HSS and heavy-duty machining - with threaded holes for balancing screws

Note: Matching collets see under 248910, 248920 and 248930 on page 24/514.

24

8° l 1

240721 HAIMER, collet chuck Power ER, short

ST/ Collet	240721	d1 mm	d3 mm	l1 mm	l2 mm	Locking thread	ST/ Collet	240721	d1 mm	d3 mm	l1 mm	l2 mm	Locking thread
40/ER16		2�0 - 10	28	70	43�0	M16	50/ER16		2�0 - 10	28	70	43�0	M24
40/ER25		2�0 - 16	42	70	61�5	M16	50/ER25		2�0 - 16	42	70	62�0	M24
40/ER32		2�0 - 20	50	70	62�0	M16	50/ER32		2�0 - 20	50	70	62�5	M24

240724 HAIMER, collet chuck Power ER, long

ST/ Collet	240724	d1 mm	d3 mm	l1 mm	l2 mm	Locking thread	ST/ Collet	240724	d1 mm	d3 mm	l1 mm	l2 mm	Locking thread
40/ER16		2�0 - 10	28	100	43	M16	50/ER16		2�0 - 10	28	100	43	M24
40/ER25		2�0 - 16	42	100	51	M16	50/ER25		2�0 - 16	42	100	51	M24
40/ER32		2�0 - 20	50	100	53	M16	50/ER32		2�0 - 20	50	100	53	M24

240725 HAIMER, collet chuck Power ER, ZG130

ST/ Collet	240725	d1 mm	d3 mm	l1 mm	l2 mm	Locking thread	ST/ Collet	240725	d1 mm	d3 mm	l1 mm	l2 mm	Locking thread
50/ER16		2�0 - 10	28	130	43	M24	50/ER32		2�0 - 20	50	130	53	M24
50/ER25		2�0 - 16	42	130	51	M24	—	—	—	—	—	—	—

240727 HAIMER, collet chuck Power ER, overlong

ST/ Collet	240727	d1 mm	d3 mm	l1 mm	l2 mm	Locking thread	ST/ Collet	240727	d1 mm	d3 mm	l1 mm	l2 mm	Locking thread
40/ER16		2�0 - 10	28	160	43	M16	50/ER16		2�0 - 10	28	160	43	M24
40/ER25		2�0 - 16	42	160	51	M16	50/ER25		2�0 - 16	42	160	51	M24
40/ER32		2�0 - 20	50	160	53	M16	50/ER32		2�0 - 20	50	160	53	M24

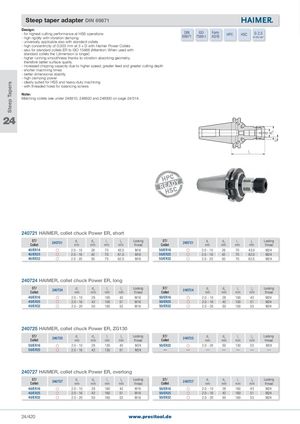

Общий каталог PRECITOOL - страница 425
