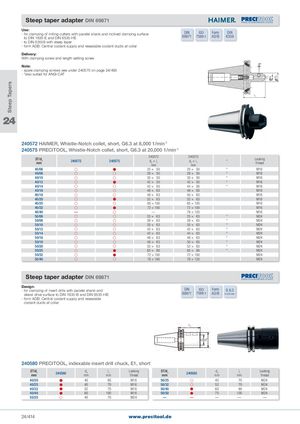

Steep Tapers d1 d3 d1 d3 Steep taper adapter DIN 69871 Use: - for clamping of milling cutters with parallel shank and inclined clamping surfaceto DIN 1835-E and DIN 6535-HEDIN ISO Form DIN698717388-1AD/B6359 - to DIN 63559 with steep taper - form ADB: Central coolant supply and resealable coolant ducts at collar Delivery: With clamping screw and length setting screw Note: - spare clamping screws see under 240570 on page 24/495 - *also suited for ANSI-CAT l1 24 240572 HAIMER, Whistle-Notch collet, short, G6.3 at 8,000 1/min-1 240575 PRECITOOL, Whistle-Notch collet, short, G6.3 at 20,000 1/min-1 ST/d1mm 240572 240575 240572d3 × l1mm 240575d3 × l1mm * Lockingthread 40/06   25 ×   50 25 ×   50 * M16 40/08   28 ×   50 28 ×   50 * M16 40/10   35 ×   50 35 ×   50 * M16 40/12   42 ×   50 42 ×   50 * M16 40/14   42 ×   50 44 ×   50 * M16 40/16   48 ×   63 48 ×   63 M16 40/18   48 ×   63 50 ×   63 M16 40/20   52 ×   63 52 ×   63 M16 40/25   65 × 100 65 × 100 M16 40/32   72 × 100 72 × 100 M16 40/40 —  — 78 × 120 M16 50/06   25 ×   63 25 ×   63 * M24 50/08   28 ×   63 28 ×   63 * M24 50/10   35 ×   63 35 ×   63 * M24 50/12   42 ×   63 42 ×   63 * M24 50/14   42 ×   63 44 ×   63 * M24 50/16   48 ×   63 48 ×   63 * M24 50/18   48 ×   63 50 ×   63 * M24 50/20   52 ×   63 52 ×   63 * M24 50/25   65 ×   80 65 ×   80 * M24 50/32   72 × 100 72 × 100 M24 50/40   78 × 100 78 × 120 M24 Steep taper adapter DIN 69871 Design: - for clamping of insert drills with parallel shank and DIN ISO Form G 6,3 lateral drive surface to DIN 1835-B and DIN 6535-HB 69871 7388-1 AD/B 15.000 min-1 - form ADB: Central coolant supply and resealable coolant ducts at collar l1 240580 PRECITOOL, indexable insert drill chuck, E1, short ST/d1mm 240580 d3mm l1mm Lockingthread ST/d1mm 240580 d3mm l1mm Lockingthread 40/20  40 65 M16 50/25  45 70 M24 40/25  45 70 M16 50/32  52 70 M24 40/32  52 75 M16 50/40  60 80 M24 40/40  60 100 M16 50/50  75 105 M24 50/20  40 70 M24 — — — — — 24/414 www.precitool.de
