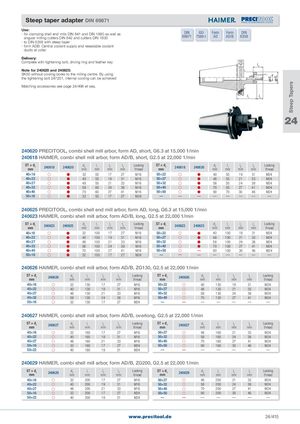

Общий каталог PRECITOOL

- for clamping shell end mills DIN 841 and DIN 1880 as well as angular milling cutters DIN 842 and cutters DIN 1830 - to DIN 6358 with steep taper - form ADB: Central coolant supply and resealable coolant ducts at collar

Delivery: Complete with tightening bolt, driving ring and feather key

Note for 240620 and 240625: SK50 without cooling bores to the milling centre. By using the tightening bolt 247201, internal cooling can be achieved Matching accessories see page 24/496 et seq.

DIN ISO 69871 7388-1

Form AD

Form AD/B

DIN 6358

l 1

l 3

l 2

24 240620 PRECITOOL, combi shell mill arbor, form AD, short, G6.3 at 15,000 1/min

240618 HAIMER, combi shell mill arbor, form AD/B, short, G2.5 at 22,000 1/min

ST × d1 mm	240618	240620	d3 mm	l1 mm	l2 mm	l3 mm	Locking thread	ST × d1 mm	240618	240620	d3 mm	l1 mm	l2 mm	l3 mm	Locking thread
40×16			32	55	17	27	M16	50×22			40	55	19	31	M24
40×22			40	55	19	31	M16	50×27			48	55	21	33	M24
40×27			48	55	21	33	M16	50×32			58	55	24	38	M24
40×32			58	60	24	38	M16	50×40			70	55	27	41	M24
40×40			70	60	27	41	M16	50×50			90	70	30	46	M24
50×16			32	55	17	27	M24	—	—	—	—	—	—	—	—

240625 PRECITOOL, combi shell end mill arbor, form AD, long, G6.3 at 15,000 1/min

240623 HAIMER, combi shell mill arbor, form AD/B, long, G2.5 at 22,000 1/min

ST × d1 mm	240623	240625	d3 mm	l1 mm	l2 mm	l3 mm	Locking thread	ST × d1 mm	240623	240625	d3 mm	l1 mm	l2 mm	l3 mm	Locking thread
40×16			32	100	17	27	M16	50×22			40	100	19	31	M24
40×22			40	100	19	31	M16	50×27			48	100	21	33	M24
40×27			48	100	21	33	M16	50×32			58	100	24	38	M24
40×32			58	100	24	38	M16	50×40			70	100	27	41	M24
40×40			70	100	27	41	M16	50×50		—	90	100	30	46	M24
50×16			32	100	17	27	M24	—	—	—	—	—	—	—	—

240626 HAIMER, combi shell mill arbor, form AD/B, ZG130, G2.5 at 22,000 1/min

ST × d1 mm	240626	d3 mm	l1 mm	l2 mm	l3 mm	Locking thread	ST × d1 mm	240626	d3 mm	l1 mm	l2 mm	l3 mm	Locking thread
40×16		32	130	17	27	M16	50×22		40	130	19	31	M24
40×22		40	130	19	31	M16	50×27		48	130	21	33	M24
40×27		48	130	21	33	M16	50×32		58	130	24	38	M24
40×32		58	130	24	38	M16	50×40		70	130	27	41	M24
50×16		32	130	17	27	M24	—	—	—	—	—	—	—

240627 HAIMER, combi shell mill arbor, form AD/B, overlong, G2.5 at 22,000 1/min

ST × d1 mm	240627	d3 mm	l1 mm	l2 mm	l3 mm	Locking thread	ST × d1 mm	240627	d3 mm	l1 mm	l2 mm	l3 mm	Locking thread
40×16		32	160	17	27	M16	50×27		48	160	21	33	M24
40×22		40	160	19	31	M16	50×32		58	160	24	38	M24
40×27		48	160	21	33	M16	50×40		70	160	27	41	M24
50×16		32	160	17	27	M24	50×50		90	160	30	46	M24
50×22		40	160	19	31	M24	—	—	—	—	—	—	—

240629 HAIMER, combi shell mill arbor, form AD/B, ZG200, G2.5 at 22,000 1/min

ST × d1 mm	240629	d3 mm	l1 mm	l2 mm	l3 mm	Locking thread	ST × d1 mm	240629	d3 mm	l1 mm	l2 mm	l3 mm	Locking thread
40×16		32	200	17	27	M16	50×27		48	200	21	33	M24
40×22		40	200	19	31	M16	50×32		58	200	24	38	M24
40×27		48	200	21	33	M16	50×40		70	200	27	41	M24
50×16		32	200	17	27	M24	50×50		90	200	30	46	M24
50×22		40	200	19	31	M24	—	—	—	—	—	—	—
