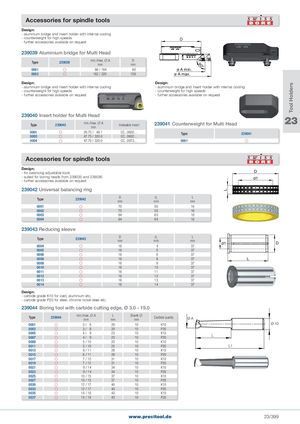

L Tool Holders Accessories for spindle tools Design: - aluminium bridge and insert holder with internal cooling - counterweight for high speeds D - further accessories available on request 239039 Aluminium bridge for Multi Head Type 239039 min./max. x Amm Dmm 90° 0001    86 / 164 80 ø A min. 0003  162 / 320 158 ø A max. Design: Design: - aluminium bridge and insert holder with internal cooling - aluminium bridge and insert holder with internal cooling - counterweight for high speeds - counterweight for high speeds - further accessories available on request - further accessories available on request 239040 Insert holder for Multi Head Type 239040 min./max. x Amm Indexable insert 239041 Counterweight for Multi Head 23 0001  29.75 /   48.1 CC...0602... Type 239041 0003  47.75 / 320.0 CC...0602... 0004  47.75 / 320.0 CC...09T3... 0001  Accessories for spindle tools Design: - for balancing adjustable tools D - suited for boring heads from 239035 and 239036 d1 - further accessories available on request 239042 Universal balancing ring Type 239042 D d1mmmm Lmm 0001  70 50 16 0002  75 55 16 0003  84 63 16 0004  84 64 16 239043 Reducing sleeve Type 239043 D d1mmmm Lmm d1 D 0004  16 4 37 0005  16 5 37 0006  16 6 37 0008  16 8 37 L 0009  16 9 37 0010  16 10 37 0011  16 11 37 0012  16 12 37 0013  16 13 37 0014  16 14 37 Design: - carbide grade K10 for cast, aluminium etc. - carbide grade P20 for steel, chrome nickel steel etc. 239044 Boring tool with carbide cutting edge, Ø 3.0 - 19.0 Type 239044 min./max. x Amm Lmm Shank xmm Carbide quality ØA 0001   3/ 8 20 10 K10 Ø 10 0003   3/ 8 20 10 P20 0005   4/ 9 23 10 K100007 4/ 92310P20 L 0009    5 / 10 25 10 K10 0011    5 / 10 25 10 P20 L1 0013    6 / 11 28 10 K10 0015    6 / 11 28 10 P20 0017    7 / 12 31 10 K10 0019    7 / 12 31 10 P20 0021    9 / 14 34 10 K10 0023    9 / 14 34 10 P20 0025  10 / 15 37 10 K10 0027  10 / 15 37 10 P20 0030  12 / 17 40 10 K10 0033  12 / 17 40 10 P20 0035  14 / 19 43 10 K10 0037  14 / 19 43 10 P20 www.precitool.de 23/399
