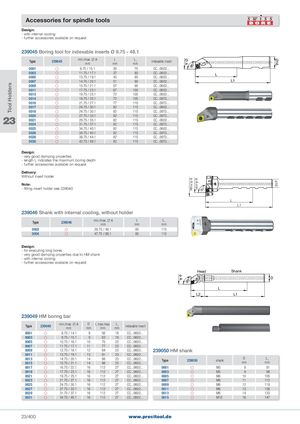

Общий каталог PRECITOOL - страница 405
Навигация
- with internal cooling - further accessories available on request
239045 Boring tool for indexable inserts Ø 9.75 - 48.1
| Type | 239045 | min�/max� A | L | L | |
| 1 | Indexable insert | ||||
| mm mm | mm | ||||
| 0001 | | 9�75 / 15�1 | 30 | 75 | CC���0602��� |
| 0003 | | 11�75 / 17�1 | 37 | 80 | CC���0602��� |
| 0005 | | 13�75 / 19�1 | 43 | 85 | CC���0602��� |
| 0007 | 14�75 / 20�1 | 51 | 90 | CC���0602��� | |
| 0009 | | 15�75 / 21�1 | 57 | 95 | CC���0602��� |
| 0011 | | 17�75 / 23�1 | 67 | 100 | CC���0602��� |
| 0013 | | 19�75 / 25�1 | 72 | 105 | CC���0602��� |
| 0014 | | 19�75 / 25�1 | 72 | 105 | CC���09T3��� |
| 0016 | | 21�75 / 27�1 | 77 | 110 | CC���09T3��� |
| 0017 | | 24�75 / 30�1 | 82 | 115 | CC���0602��� |
| 0018 | | 24�75 / 30�1 | 82 | 115 | CC���09T3��� |
| 23 0020 | | 27�75 / 33�1 | 82 | 115 | CC���09T3��� |
| 0021 | | 29�75 / 35�1 | 82 | 115 | CC���0602��� |
| 0024 | | 31�75 / 37�1 | 82 | 115 | CC���09T3��� |
| 0025 | | 34�75 / 40�1 | 82 | 115 | CC���0602��� |
| 0026 | | 34�75 / 40�1 | 82 | 115 | CC���09T3��� |
| 0028 | | 38�75 / 44�1 | 82 | 115 | CC���09T3��� |
| 0030 | | 42�75 / 48�1 | 82 | 115 | CC���09T3��� |
Design: - very good damping properties - length L indicates the maximum boring depth - further accessories available on request
Delivery: Without insert holder
Note: - fitting insert holder see 239040
239046 Shank with internal cooling, without holder
90°
90°
L
L1
L L1
| Type | 239046 | min�/max�A mm | L mm | L1 mm |
| 0002 | | 29�75 / 48�1 | 85 | 115 |
| 0004 | | 47�75 / 88�1 | 85 | 115 |
Design: - for executing long bores - very good damping properties due to HM shank - with internal cooling - further accessories available on request
90°
Head Shank D L L2 L1
239049 HM boring bar
| T | 239049 | min�/max�A | D | L max�max� | L² | Indbl inrt | |||||
| ype | mm | mm | mm | mm | exae se | ||||||
| 0001 | | 8�75 / 14�1 | 8 | 56 | 18 | CC���0602��� | |||||
| 0003 | | 9�75 / 15�1 | 9 | 63 | 18 | CC���0602��� | |||||
| 0005 | | 10�75 / 16�1 | 10 | 70 | 23 | CC���0602��� | |||||
| 0007 | | 11�75 / 17�1 | 11 | 77 | 23 | CC���0602��� | |||||
| 0009 | | 12�75 / 18�1 | 12 | 84 | 23 | CC���0602��� | 239050 HM | shank | |||
| 0011 | | 13�75 / 19�1 | 13 | 91 | 23 | CC���0602��� | |||||
| 0013 | | 14�75 / 20�1 | 14 | 98 | 23 | CC���0602��� | Type | 239050 | shank | D | L1 |
| 0015 | | 15�75 / 21�1 | 14 | 98 | 23 | CC���0602��� | mm | mm | |||
| 0017 | | 16�75 / 22�1 | 16 | 112 | 27 | CC���0602��� | 0001 | | M5 | 8 | 91 |
| 0019 | | 17�75 / 23�1 | 16 | 112 | 27 | CC���0602��� | 0003 | | M5 | 9 | 98 |
| 0021 | | 19�75 / 25�1 | 16 | 112 | 27 | CC���0602��� | 0005 | | M6 | 10 | 105 |
| 0023 | | 21�75 / 27�1 | 16 | 112 | 27 | CC���0602��� | 0007 | | M6 | 11 | 112 |
| 0025 | | 24�75 / 30�1 | 16 | 112 | 27 | CC���0602��� | 0009 | | M6 | 12 | 119 |
| 0027 | | 27�75 / 33�1 | 16 | 112 | 27 | CC���0602��� | 0011 | | M6 | 13 | 126 |
| 0029 | | 31�75 / 37�1 | 16 | 112 | 27 | CC���0602��� | 0013 | | M6 | 14 | 133 |
| 0031 | | 34�75 / 40�1 | 16 | 112 | 27 | CC���0602��� | 0015 | | M10 | 16 | 147 |
