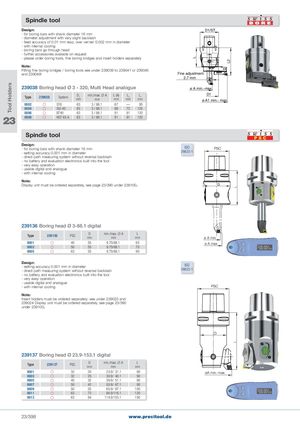

Design: D1/ST - for boring bars with shank diameter 16 mm - diameter adjustment with very slight backlash - feed accuracy of 0.01 mm resp. over vernier 0.002 mm in diameter - with internal cooling - boring bars go through head - further accessories available on request - please order boring tools, fine boring bridges and insert holders separately
Note: Fitting fine boring bridges / boring tools see under 239039 to 239041 or 239045 and 239049! Fine adjustment 2,7 mm
| 239038 | Boring | head Ø | 3 - 32 | 0, Multi He | ad ana | logu | e |
| Type | 239038 | System | D1 mm | min�/max�A mm | L (A) mm | L1 mm | L² mm |
| 0002 | | ST6 | 63 | 3 / 88�1 | 67 | — | 95 |
| 0004 | | ISO 40 | 63 | 3 / 88�1 | 96 | 72 | 125 |
| 0006 | | BT40 | 63 | 3 / 88�1 | 91 | 81 | 120 |
| 0008 | | HST 63 A | 63 | 3 / 88�1 | 91 | 81 | 120 |
Spindle tool
Design:
- for boring bars with shank diameter 16 mm ISO PSC
- setting accuracy 0.001 mm in diameter 26623-1 - direct path measuring system without reversal backlash - no battery and evaluation electronics built into the tool - very easy operation
- usable digital and analogue - with internal cooling
Note: Display unit must be ordered separately, see page 23/390 under 239100. D
239136 Boring head Ø 3-88.1 digital
| Type | 239136 | PSC | D mm | min�/max�A mm | L mm |
| 0001 | | 40 | 55 | 9�75/88�1 | 65 |
| 0003 | | 50 | 55 | 9�75/88�1 | 70 |
| 0005 | | 63 | 55 | 9�75/88�1 | 90 |
Design: - setting accuracy 0.001 mm in diameter ISO - direct path measuring system without reversal backlash 26623-1 - no battery and evaluation electronics built into the tool - very easy operation - usable digital and analogue - with internal cooling PSC
Note: Insert holders must be ordered separately; see under 239023 and 239024 Display unit must be ordered separately, see page 23/390 under 239100.
D
239137 Boring head Ø 23.9-153.1 digital
| Type | 239137 | PSC | D mm | min�/max�A mm | L mm |
| 0001 | | 32 | 20 | 23�9/ 31�1 | 80 |
| 0003 | | 32 | 25 | 30�9/ 40�1 | 90 |
| 0005 | | 40 | 32 | 39�9/ 51�1 | 90 |
| 0007 | | 50 | 42 | 50�9/ 67�1 | 90 |
| 0009 | | 50 | 55 | 65�9/ 87�1 | 100 |
| 0011 | | 63 | 72 | 86�9/116�1 | 120 |
| 0013 | | 63 | 94 | 114�9/153�1 | 150 |
