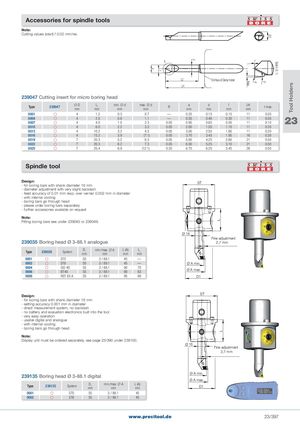

Cutting values (start) f 0.02 mm/rev.
A 1°
L2 End face of Clamp holder R
LH 239047 Cutting insert for micro boring head
| Type | 239047 | D mm | L² mm | min�d mm | max�d mm | R | a mm | d mm | f mm | LH mm | t max� |
| 0001 | | 4 | 1�2 | 0�3 | 0�7 | — | 0�25 | 0�15 | 0�15 | 11 | 0�03 |
| 0004 | | 4 | 2�5 | 0�6 | 1�1 | — | 0�55 | 0�46 | 0�30 | 11 | 0�05 |
| 0007 | | 4 | 4�0 | 1�0 | 2�3 | 0�05 | 0�95 | 0�65 | 0�50 | 11 | 0�10 |
| 0010 | | 4 | 6�0 | 2�2 | 3�3 | 0�05 | 2�00 | 1�55 | 1�10 | 11 | 0�20 |
| 0013 | | 4 | 10�2 | 3�2 | 4�3 | 0�05 | 3�00 | 2�55 | 1�60 | 11 | 0�20 |
| 0016 | | 4 | 15�2 | 3�9 | (7�1) | 0�05 | 3�70 | 3�45 | 1�95 | 16 | 0�30 |
| 0019 | | 7 | 20�3 | 5�2 | 6�3 | 0�05 | 5�00 | 4�25 | 2�60 | 21 | 0�50 |
| 0022 | | 7 | 20�3 | 6�2 | 7�3 | 0�05 | 6�00 | 5�25 | 3�10 | 21 | 0�50 |
| 0025 | | 7 | 25�4 | 6�9 | (12�1) | 0�20 | 6�70 | 6�25 | 3�45 | 26 | 0�50 |
Spindle tool
Design: ST - for boring bars with shank diameter 16 mm - diameter adjustment with very slight backlash - feed accuracy of 0.01 mm resp. over vernier 0.002 mm in diameter - with internal cooling - boring bars go through head - please order boring bars separately - further accessories available on request
Note: Fitting boring bars see under 239045 or 239049.
Ø 16 Fine adjustment 239035 Boring head Ø 3-88.1 analogue 2,7 mm
| Type | 239035 | System | D1 mm | min�/max�A mm | L (A) mm | L1 mm |
| 0001 | | ST5 | 55 | 3 / 88�1 | 45 | — |
| 0002 | | ST6 | 55 | 3 / 88�1 | 45 | — |
| 0004 | | ISO 40 | 55 | 3 / 88�1 | 90 | 70 |
| 0006 | | BT40 | 55 | 3 / 88�1 | 90 | 63 |
| 0008 | | HST 63 A | 55 | 3 / 88�1 | 95 | 69 |
Ø A max.
Design: - for boring bars with shank diameter 16 mm - setting accuracy 0.001 mm in diameter - direct measurement system, no backlash - no battery and evaluation electronics built into the tool - very easy operation - usable digital and analogue - with internal cooling - boring bars go through head
Note: Display unit must be ordered separately, see page 23/390 under 239100.
Ø 16
ST
Fine adjustment 2,7 mm
239135 Boring head Ø 3-88.1 digital Ø A min. Ø A max.
D min�/max� A L (A)
| Type | 239135 | System | 1 | D1 | |||
| 0001 | | ST5 | 55 | 3 / 88�1 | 45 | ||
| 0002 | | ST6 | 55 | 3 / 88�1 | 45 |
