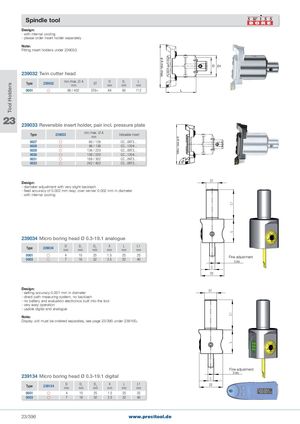

- with internal cooling - please order insert holder separately
Note: Fitting insert holders under 239033.
D D1
239032 Twin cutter head
min�/max� A D D L
Type 239032 ST 1
| mm | mm | mm | mm | ||||
| 0001 | | 86 / 402 | ST6+ | 64 | 80 | 112 | L |
23
239033 Reversible insert holder, pair incl. pressure plate
| Type | 239033 | min�/max�A mm | Indexable insert |
| 0027 | | 86 / 138 | CC���09T3��� |
| 0028 | | 86 / 138 | CC���1204��� |
| 0029 | | 136 / 220 | CC���09T3��� |
| 0030 | | 136 / 220 | CC���1204��� |
| 0031 | | 188 / 302 | CC���09T3��� |
| 0033 | | 242 / 402 | CC���09T3��� |
Design: D1 - diameter adjustment with very slight backlash - feed accuracy of 0.002 mm resp. over vernier 0.002 mm in diameter - with internal cooling
239034 Micro boring head Ø 0.3-19.1 analogue
| D | D | D | X | L | L1 | ||
| Type | 239034 | 1 | 2 | ||||
| mm | mm | mm | mm | mm | mm | ||
| 0001 | | 4 | 10 | 25 | 1�5 | 25 | 25 |
| 0003 | | 7 | 16 | 32 | 2�5 | 32 | 40 |
D D2
Fine adjustment X mm
Design: - setting accuracy 0.001 mm in diameter D1 - direct path measuring system, no backlash - no battery and evaluation electronics built into the tool - very easy operation - usable digital and analogue
Note: Display unit must be ordered separately, see page 23/390 under 239100.
239134 Micro boring head Ø 0.3-19.1 digital
| D | D | D | X | L | L1 | ||
| Type | 239134 | 1 | 2 | ||||
| 0001 | | 4 | 10 | 25 | 1�5 | 25 | 25 |
| 0003 | | 7 | 16 | 32 | 2�5 | 32 | 40 |
D D2
Fine adjustment X mm
