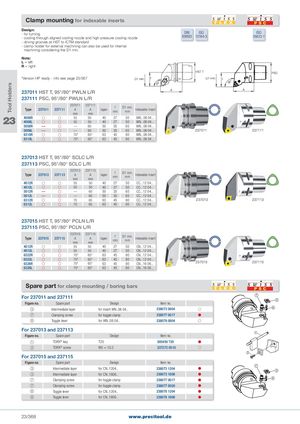

Общий каталог PRECITOOL - страница 373

Tool Holders Clamp mounting for indexable inserts Design:- for turning- cooling through aligned cooling nozzle and high-pressure cooling nozzle DIN ISO6989312164-3 ISO26623-1 - driving grooves at HST to ICTM standard - clamp holder for external machining can also be used for internal machining considering the D1 min. Note: L = left R = right HST T PSC *Version HP ready - info see page 23/367 D1 min. f 95° D1 min. f 95° 237011 HST T, 95°/80° PWLN L/R A A 237111 PSC, 95°/80° PWLN L/R Type 237011 237111 237011Amm 237111Ammtaper fmm D1 min.mmIndexable insert 23 4008R4008L   55 50 40 27 50 WN...08 04...5550402750WN...08 04... 5008R —  — 60 50 35 65 WN...08 04... 5008L —  — 60 50 35 65 WN...08 04... 237011 237111 6318R   70* 65* 63 45 80 WN...08 04... 6318L   70* 65* 63 45 80 WN...08 04... 237013 HST T, 95°/80° SCLC L/R 237113 PSC, 95°/80° SCLC L/R Type 237013 237113 237013Amm 237113Ammtaper fmm D1 min.mmIndexable insert 4012R   55 50 40 27 50 CC...12 04... 4012L   55 50 40 27 50 CC...12 04... 5012R —  — 60 50 35 65 CC...12 04... 5012L —  — 60 50 35 65 CC...12 04... 6312R   70 65 63 45 80 CC...12 04... 237013 237113 6312L   70 65 63 45 80 CC...12 04... 237015 HST T, 95°/80° PCLN L/R 237115 PSC, 95°/80° PCLN L/R Type 237015 237115 237015Amm 237115Ammtaper fmm D1 min.mmIndexable insert 4012R   55 50 40 27 50 CN...12 04... 4012L   55 50 40 27 50 CN...12 04... 6322R   70* 65* 63 45 80 CN...12 04... 6322L   70* 65* 63 45 80 CN...12 04... 6326R   70* 65* 63 45 80 CN...16 06... 237015 237115 6326L   70* 65* 63 45 80 CN...16 06... Spare part for clamp mounting / boring bars For 237011 and 237111 7 3 Figure no. Spare part Design Item no. c Intermediate layer for insert WN..08 04.. 238073 0804  8 g Clamping screw for toggle clamp 238077 0017  h Toggle lever for WN..08 04.. 238078 0804  For 237013 and 237113 1 Figure no. Spare part Design Item no. a TORX® key T20 505450 T20  b TORX® screw M5 × 10.2 237272 0510  2 For 237015 and 237115 Figure no. Spare part Design Item no. 7 c Intermediate layer for CN..1204.. 238073 1204  3 c Intermediate layer for CN..1606.. 238073 1606  g Clamping screw for toggle clamp 238077 0017  8 g Clamping screw for toggle clamp 238077 0020  h Toggle lever for CN..1204.. 238078 1204  h Toggle lever for CN..1606.. 238078 1606  23/368 www.precitool.de
